DecoderPro® Main Window

Help Menu


Window Help...

Displays help that for the current window.

General Help...

Displays general information about DecoderPro and other JMRI programs.

License...

Displays the License agreement under which JMRI operates.

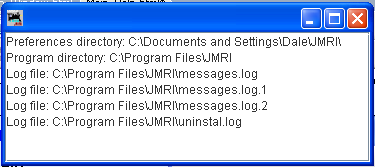

Locations...

Opens an information box showing the location of JMRI programs and files related to DecoderPro.

location information

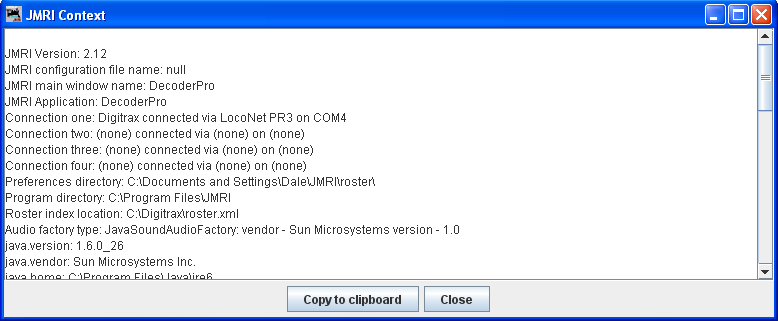

Context...

Opens the JMRI Context window that shows the configuration setting for your DecoderPro installation.

Context

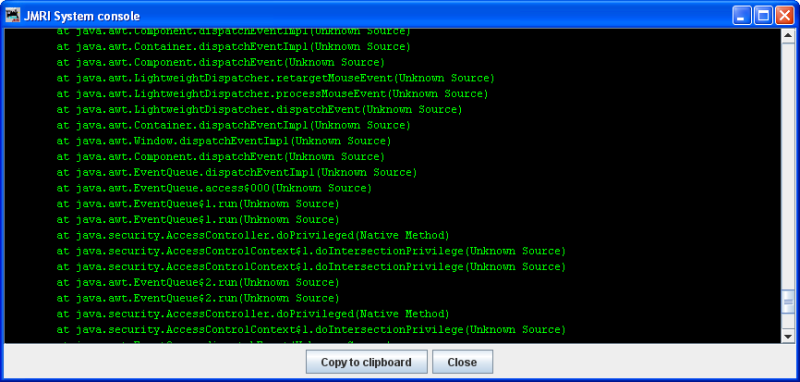

System Console...

Opens the JMRI System console window that displays the Java Execution activity. Now Right Click Context menu to copy to clipboard, wrap messages, change color scheme.

console

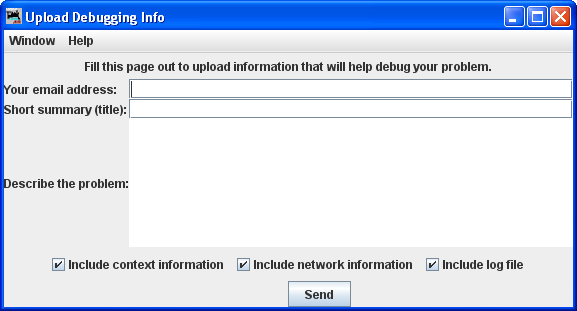

Upload Debugging Info...

Opens the Upload Debugging Info Window

help
