DecoderPro® Main Window

File Menu


DecoderPro 3®

Opens the, new in this version of JMRI, DecoderPro3 program which is optimized to program locomotives and maintain roster.

Print Decoder Definitions...

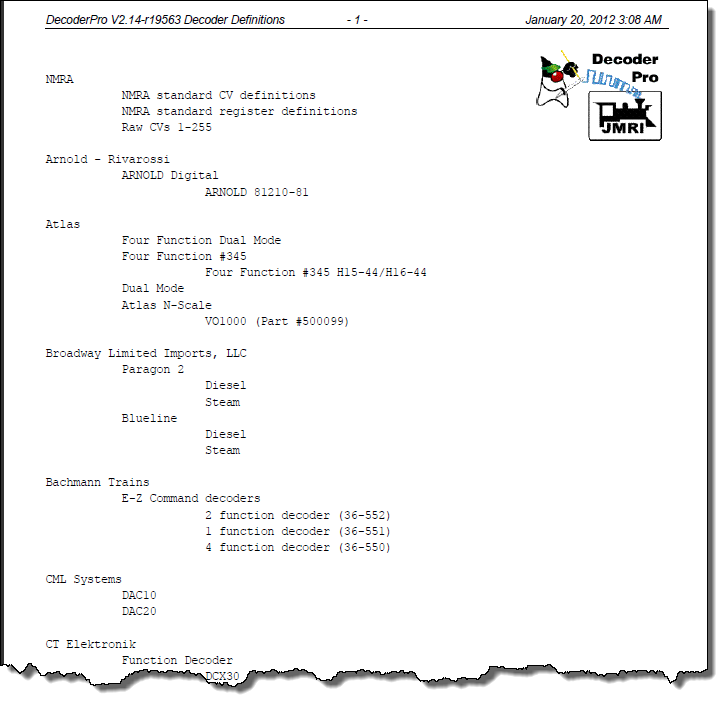

Opens your computer Print dialog to print the installed decoder definitions. The complete list may be more than 25 printed pages. The format is shown below.

decoder printout

Print Preview Decoder Definitions...

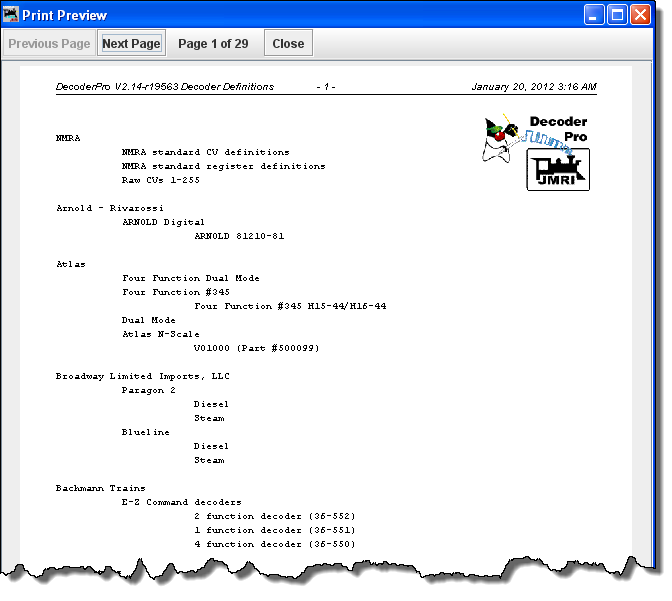

Opens your computer Preview window opens. A list of all the Decoder Definitions installed in DecoderPro will be displayed. You then can decide whether to print the pages.

decoder preview

sep

Quit

Closes DecoderPro and all associated functions, same as clicking on the Quit button
