JMRI Hardware Guide: Chubb C/MRI

Supported Hardware

At this time, the directly connected IBEC and UBEC interfaces are not supported.

Contents

The documentation below discusses how JMRI may be used with C/MRI, and how to get started with connecting a C/MRI system to JMRI. It assumes a basic knowledge of JMRI (as documented on this JMRI web site), and some familiarity with C/MRI. It is highly recommended that C/MRI users have access to Bruce Chubb's C/MRI User Manual, Version 3.0, because it contains detailed hardware documentation not available elsewhere. Since you don't need to program your computer if you're using JMRI with your C/MRI system, you can skip over computer programming details when consulting the C/MRI User Manual. The documentation below is divided into sections; click for easy access to a section listed below:

Introduction to C/MRI on JMRI

C/MRI is a system of digital input and digital output lines that can be used to connect a computer to a model railroad layout, allowing computer monitoring and control of various things of the layout. The SUSIC (Super Universal Serial Interface Card) is the controller board for a large digital I/O system supporting, via a motherboard, up to 64 digital input and digital output cards, with either 24 or 32 input or output lines per card. The USIC is an older version of the SUSIC. The SMINI (Super Mini-node) card is a stand- alone serial node providing a fixed 24 input lines and 48 output lines. A number of other interface boards are available as part of C/MRI, but they all connect to your computer via an SMINI, a SUSIC, or a USIC. For example, C/MRI's DCCOD occupancy detector board connects to an SMINI (or SUSIC or USIC) input line. Layouts that use C/MRI will commonly have several SMINI's located at different places on the layout, and perhaps one or two SUSIC's located at CTC panels.

C/MRI is not a train control system. You may run C/MRI with a DCC train control system (such as, Digitrax, Lenz, or NCE) or with a DC train control system. And you can use JMRI with your C/MRI system whether you are using DCC or DC to control your trains. If you are controlling your trains with a system that JMRI supports, you can connect your C/MRI system and your train control system to JMRI simultaneously, each with its own serial input line into your computer. Most C/MRI users who use JMRI run with connections to both their C/MRI and their train control system. There are many advantages to doing so. JMRI allows you to "mix and match" how you control and monitor things on your layout. For example, you can switch your turnouts (track switches) using static decoders on your train control system, and simultaneously use C/MRI inputs to provide turnout feedback to JMRI. JMRI is designed to make both connected systems work smoothly together.

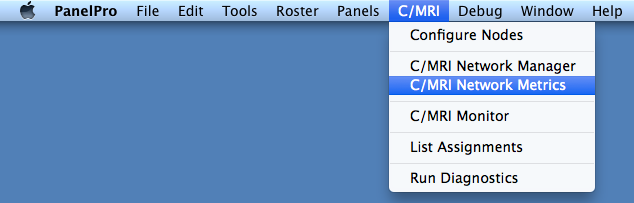

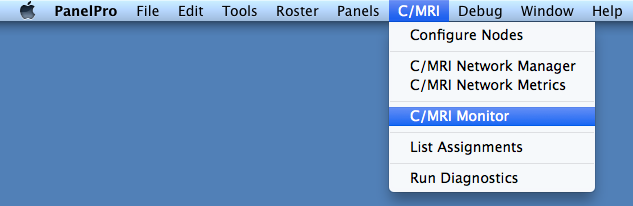

JMRI software consists of a large library, divided into 1) a system specific part, with many subparts, each of which communicates with one supported hardware system, like C/MRI, in a system specific way, and 2) a system-independent part where most of the features of JMRI are implemented. So, for example, if the user does something (perhaps setting a route) to cause JMRI to throw a turnout (track switch), that user action will occur in the system-independent part of the software, and then JMRI will send out the actual command via the system-dependent part appropriate to the hardware system controlling the particular turnout thrown. JMRI is designed so that features are implemented in the system-independent part as much as possible, with JMRI using system-dependent subparts only when really necessary. Access to system-independent features is via the main JMRI menus, such as the Tools menu. Access to system-dependent features is via a menu titled for the hardware system supported; C/MRI specific features are accessed via the CMRI menu.

JMRI presents itself to users via several application front ends, each focusing on a type of use, but all based on the same underlying software library. The popular DecoderPro application focuses on programming DCC decoders, and is not of much interest to C/MRI. On the other hand, PanelPro is the JMRI application that focuses on layout automation, signaling, and CTC panels. PanelPro is the application most often used with C/MRI, and is the one used in the examples below. Since all JMRI applications use the same library, it is possible to run a panel from DecoderPro, or even program a DCC decoder from PanelPro. It's just not quite as easy as using the focused application.

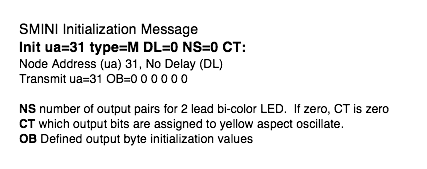

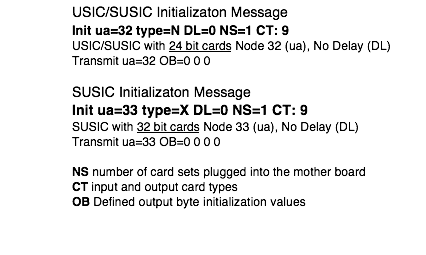

JMRI libraries have built-in support for C/MRI serial hardware using the USIC, SUSIC and SMINI. Each SMINI, USIC or SUSIC is a serial node capable of communicating independently with a computer via serial I/O. Several C/MRI nodes may be connected together using the RS485 communication protocol in a daisy chain configuration, so that only one serial line into your computer is required. For this to work, each node must have a different unique address set into the address switches on its board. Each node (USIC, SUSIC, or SMINI) needs to receive an initialization string before it can communicate with a computer. JMRI will automatically create and transmit the required initialization string when it starts up, but to make this possible, you need to tell JMRI the details of how your C/MRI hardware is set up. The process of doing so is called "configuring" your C/MRI node (see below). If you daisy chain several C/MRI nodes, you probably will need a C/MRI RS232 to RS485 conversion card between the RS485 bus connecting the cards and the RS232 serial line to connect to your computer. If your computer doesn't have an RS232 serial port (most newer computers don't), you can connect to a USB computer port with a USB-to-serial adapter (click here for help).

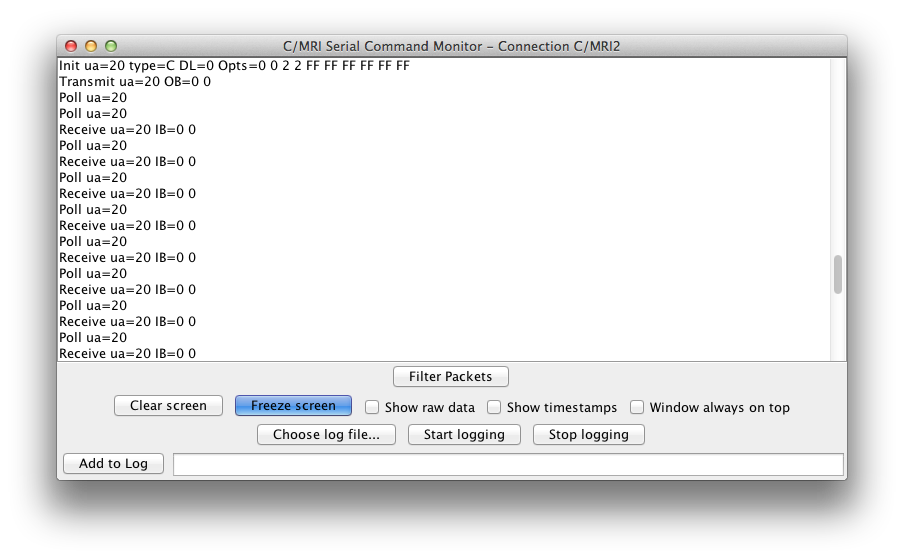

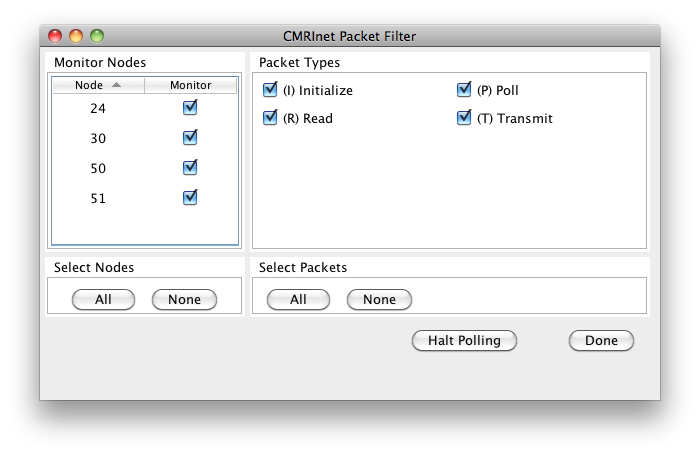

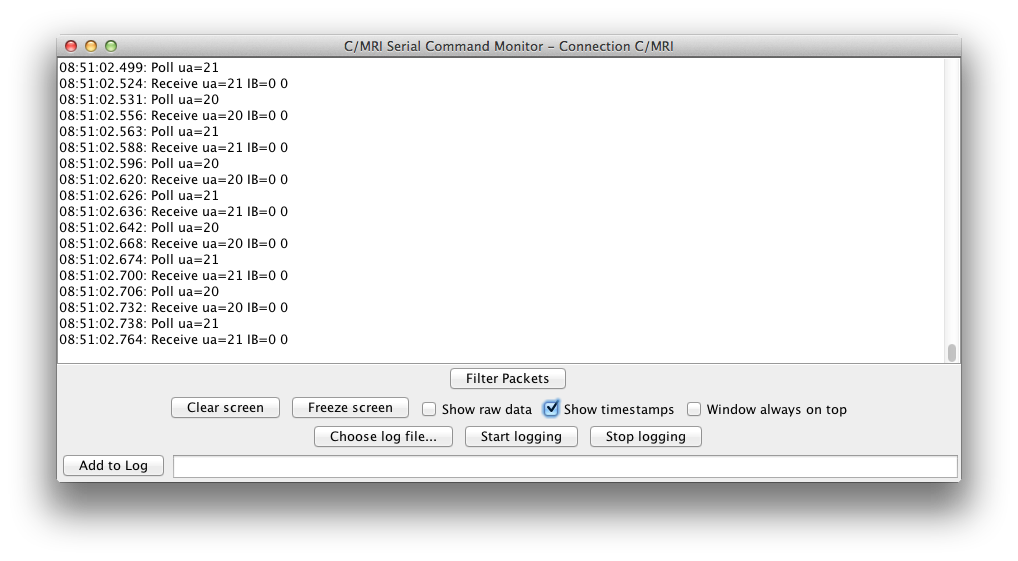

C/MRI inputs can be used as JMRI 'sensors', and C/MRI outputs can be driven as JMRI 'turnouts' or JMRI 'lights' (see below). Note that C/MRI inputs and outputs are sometimes called 'pins', sometimes called 'bits', and sometimes called 'lines'; all are equivalent ways to refer to same things. C/MRI is a polling system, which means that communicating with C/MRI nodes requires that the computer periodically send a message to each node asking it to transmit the status of its input bits. JMRI begins to poll a node when at least one sensor has been set up to refer to an input bit on that node. It is this polling action that keeps the LED's on your SMINI flashing at a high rate.

C/MRI Input and Output Bits

JMRI refers to C/MRI input bits as sensors. Sensors provide input to JMRI about conditions on the layout--a button is pushed, a block is occupied, etc. Within JMRI, you refer to a C/MRI input bit (sensor) by its "system name", CSnxxx, where nxxx is the address of the bit (see below). Before you can refer to a sensor in JMRI, it must be "created". A sensor may be created in a number of ways, including automatically. All JMRI sensors that have been created may be viewed in the JMRI sensor table, accessed by selecting Sensor Table in the Tools menu. A new sensor may be created via the sensor table as illustrated below. Creating a sensor to refer to a specific C/MRI input bit, is called "assigning" that input bit. Each input bit may be assigned only once, i.e., two different sensors may not refer to the same C/MRI input bit. A sensor is "active" when its assigned input bit is on (grounded) and "inactive" when its input bit is off. So when you see "sensor", think "input bit" or "input line".

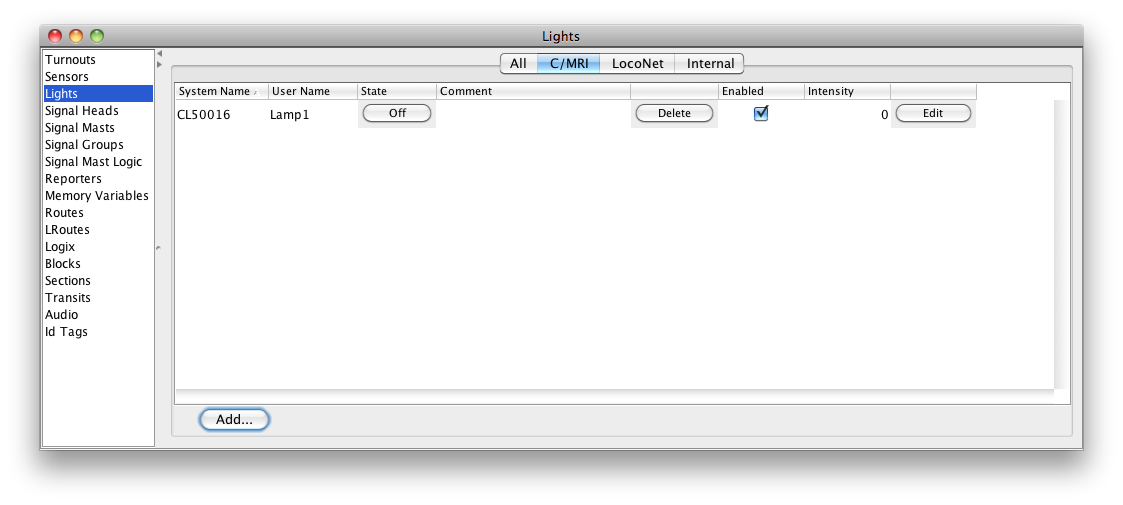

JMRI refers to C/MRI output bits as turnouts or lights. Turnouts and lights are on/off switches that JMRI can change to control things on your layout. To refer to a C/MRI output bit as a turnout, use the system name CTnxxx, where nxxx is the address of the output bit (see below). To refer to a C/MRI output bit as a light, use CLnxxx, where nxxx is the address of the output bit (see below). Turnouts and lights are different methods of referring to C/MRI outputs from within JMRI. Each method has different control options. Always use 'turnouts' for C/MRI outputs used to control turnouts (track switches) and for C/MRI outputs used to operate signals. For historical reasons, C/MRI output bits used to control signal aspects are referred to as 'turnouts', even if the output bits are used to control lighted signals. Use 'lights' to refer to C/MRI output bits used for fascia panel lights, for lights in scenery (structure lighting, street lights, etc.), and for special purposes where the control options for lights suit your needs. So when you see "turnout" or "light" in connection with C/MRI, think "output bit" or "output line".

Before you can refer to a turnout or a light within JMRI, the turnout or light must be "created". A turnout may be created in a number of ways, including automatically. All JMRI turnouts that have been created may be viewed in the JMRI turnout table, accessed by selecting Turnout Table in the Tools menu. A new turnout may be created via the turnout table by clicking "Add" at the bottom of the table. Similiarly, a new light may be created via the JMRI light table by clicking "Add" at the bottom of that table. The JMRI light table is accessed by selecting Light Table in the Tools menu. All JMRI lights that have been created are listed in the JMRI light table. Creating a turnout or a light to refer to a specific C/MRI output bit, is called "assigning" that output bit. Each light or turnout is linked to a specific output line via the address part of the system name.

A specific output bit may be referred to as a turnout or a light, but not both. Each output bit may be assigned only once. When a new C/MRI turnout or a new C/MRI light is created, JMRI checks that the specified output bit is available for assignment. If the requested C/MRI output bit is in use by a turnout or a light, JMRI will refuse to create the new turnout or new light. Note that some C/MRI turnout control options use two output bits, the addressed one and the next one (see below), and that both output bits must be unassigned for successful creation of a new turnout controlled by two output bits. Lists of current C/MRI bit assignments can be obtained by selecting List Assignments in the CMRI menu.

Getting Started with an SMINI node

It's easiest to try JMRI with a SMINI board, as there are few options to be configured for the C/MRI hardware. After you have physically connected your SMINI to your computer, follow the procedure below to configure your SMINI as a C/MRI node, and test an input and an output bit. (The procedure assumes nothing is connected to the input and output pins of your SMINI, and that you haven't made any assignments for its bits.)
  1. Start the PanelPro program.

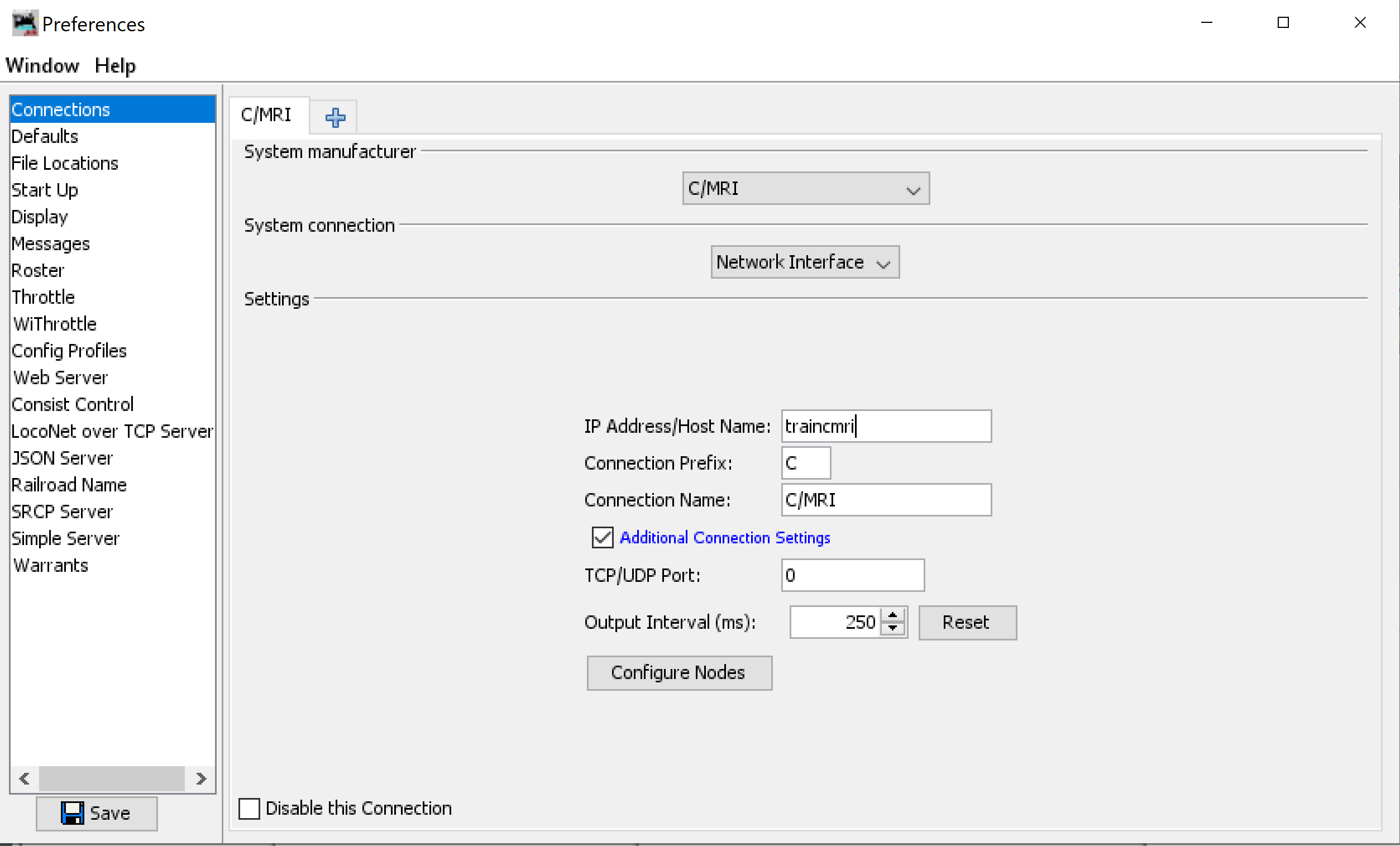

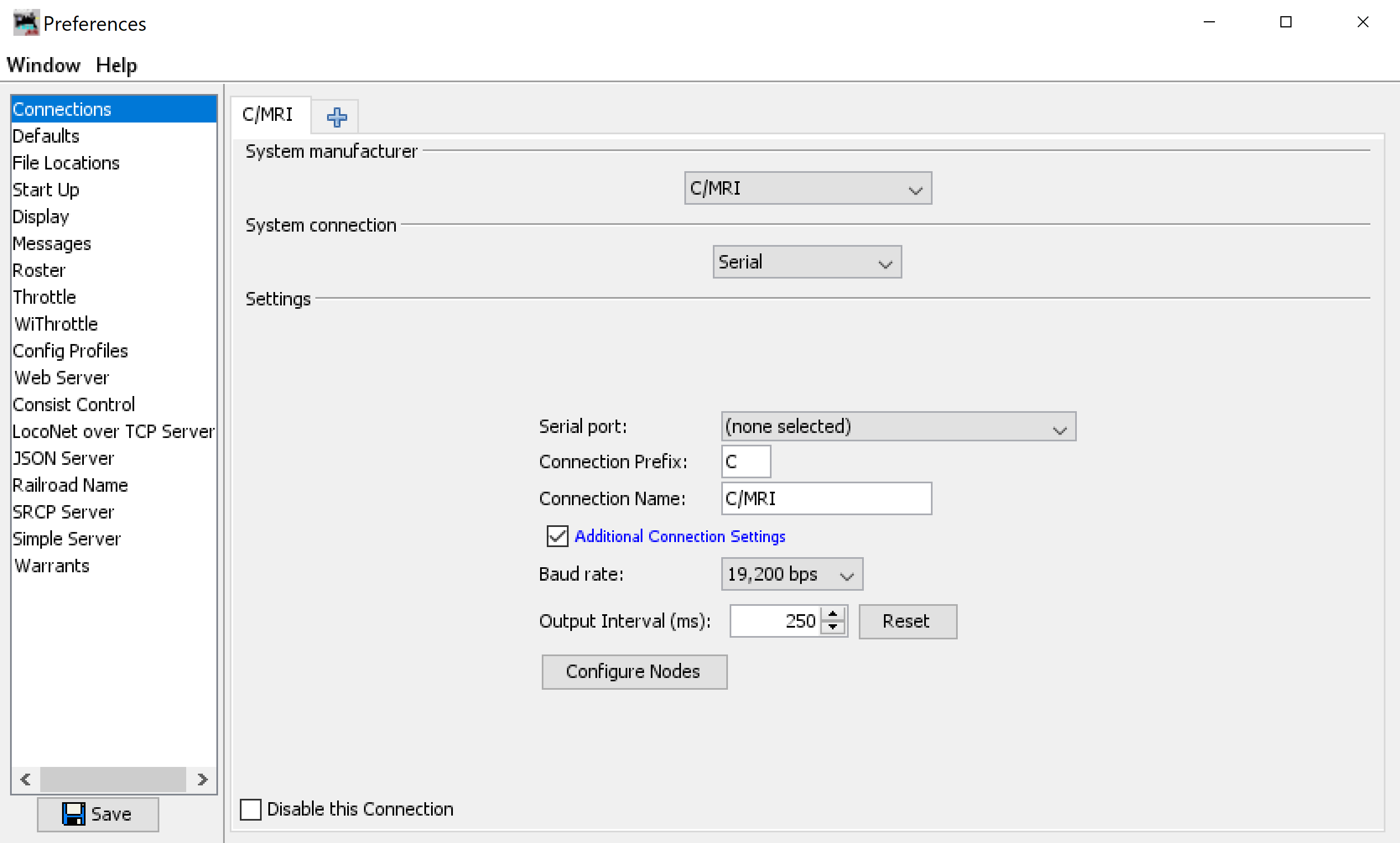

  2. From the Edit menu, select Preferences... and configure:
    • For layout connection select "C/MRI".
    • For serial port, select the port your C/MRI hardware is attached to.
    • Select the baud rate your C/MRI system uses.

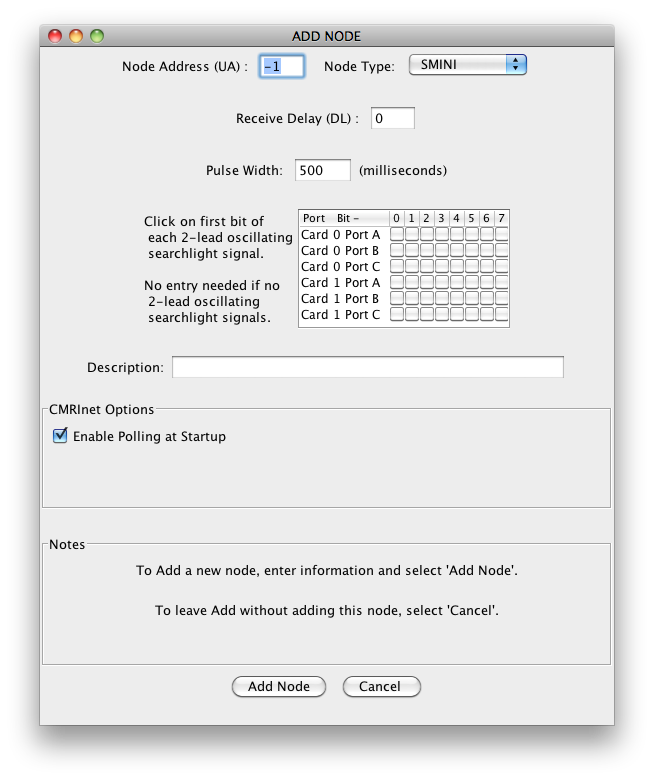

    • Click the "Configure C/MRI nodes" button. On the new panel that opens:
      • Enter your SMINI's node address. (0 is typically used for the first SMINI card, but enter whatever number is in the address switches on your SMINI board.)
      • Select "SMINI" for node type.
      • Leave DL at zero.
      • Click "Add Node".
      • Click "Done".
    • Back on the "Preferences..." panel, click "Save", and say yes when it asks if you want to quit.

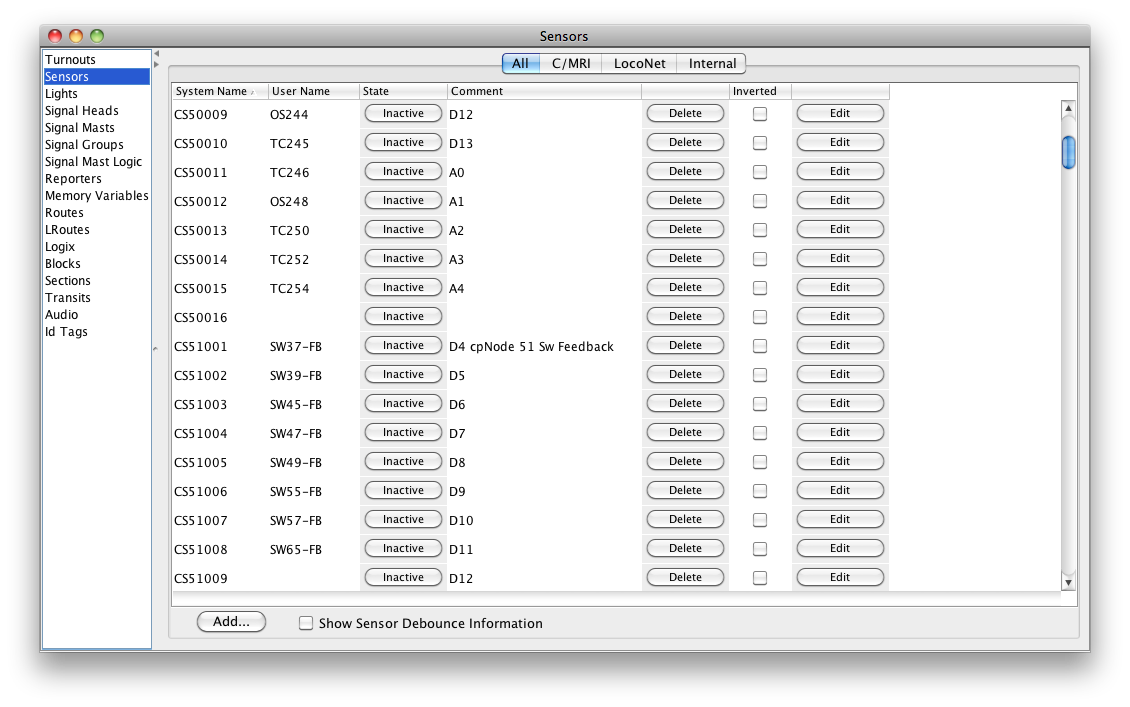

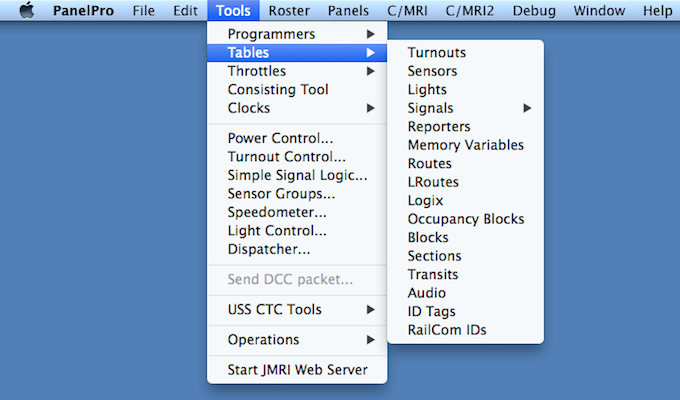

  3. Restart the program. You need to assign an input bit to start polling. Select Sensor Table from the Tools menu, and proceed:
    • Click "Add..." at the bottom of the table.
    • In the Add New Sensor dialog:
      • For system name, enter CS1 if your SMINI's node address was 0, or else enter CSn001, where n is your SMINI's node address.
      • For user name enter "Test".
      • Click "OK".

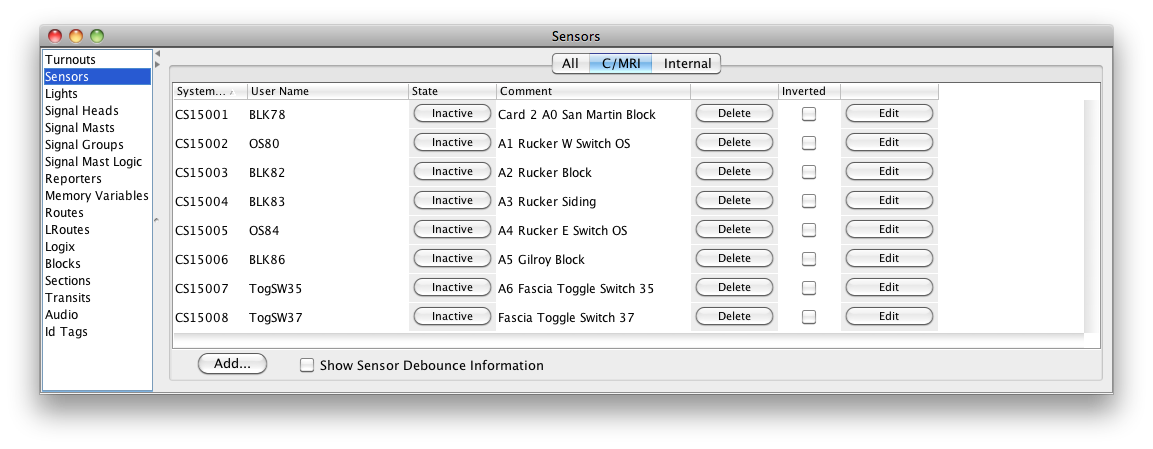

    • The system name and user name will appear in the sensor table. The state of your sensor in the sensor table will initially be "Unknown", but will quickly switch to "Inactive" when polling begins (assuming nothing is connected to input pin 1).
    The transmit and receive LED's on your SMINI board should now be flashing, indicating that the computer and the SMINI are talking.
  4. To check that the input bit (sensor) you assigned is working, connect a jumper wire from input pin 1 to the ground terminal on your SMINI board. The sensor should switch to "Active". The sensor state will alternate between "Active" and "Inactive", according to whether pin 1 is grounded or not.
  5. To check that everything is working on the output side, select Turnout Control from the Tools menu. When the small Turnout Control window opens, proceed:
    • For turnout, enter CT1 if your node address was 0, or else enter CTn001, where n is your node address. (This assigns output bit 1 of your SMINI as a turnout.)
    • Click "Closed" or "Thrown" to turn output line 1 on and off.
    If you connect an LED in series with a resistor (ohm size depends upon the direct current voltage applied) to output bit 1, you will be able to turn the LED on and off by simply clicking "Closed" or "Thrown" in the turnout control window. Note that SMINI output bits can be set up to be either "current sinking" or "current sourcing". (Which you have depends on how your SMINI is constructed.) JMRI works the same, independent of the type of output bit, but the type of output bit determines how you hook up your LED. If your output bits are current sinking (the most common type), connect the negative lead of your LED to output pin 1, and connect the resistor between the positive LED lead and a source of direct current (usually 3 to 12 volts). If your output bits are current sourcing, connect the positive lead of your LED to output pin 1, and connect the resistor between the negative lead and direct current ground.

You now have one C/MRI node configured and working. You may add more nodes, by returning to the Configure C/MRI Nodes dialog (see below).

Getting Started with a USIC or SUSIC

After you have physically connected your SUSIC (or USIC) to your computer, follow the procedure below to configure your SUSIC (or USIC) as a C/MRI node, and test an input bit and an output bit. The procedure assumes that 1) this SUSIC is the first C/MRI node being connected to your computer, 2) that nothing is connected to the input pins of your SUSIC's first digital input card, or the output pins of your SUSIC's first digital output card, and 3) that you haven't made any assignments for your SUSIC's bits.

  1. Start the PanelPro program.
  2. From the Edit menu, select Preferences... and configure:
    • For layout connection select "C/MRI".
    • For serial port, select the port your C/MRI hardware is attached to.
    • Select the baud rate your C/MRI system uses

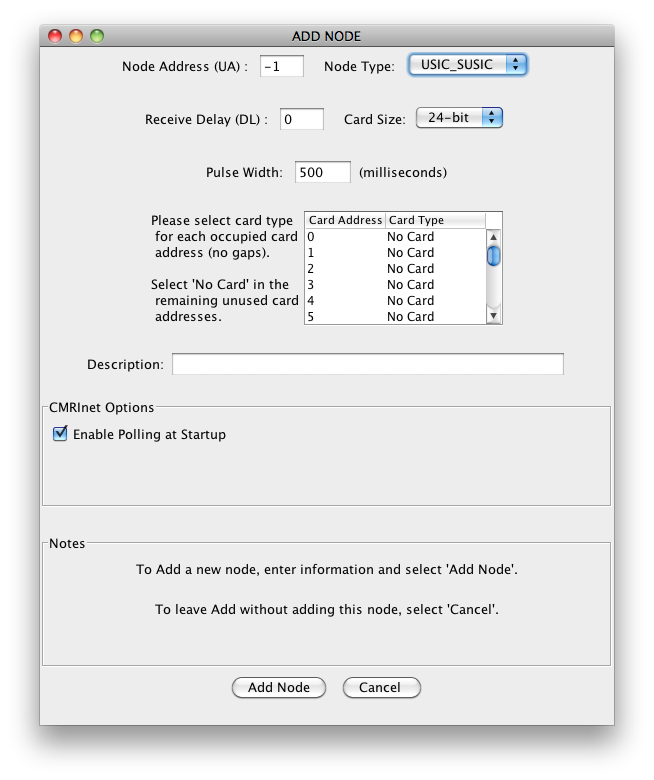

    • Click the "Configure C/MRI nodes" button. On the new panel that opens:
      • Enter your SUSIC's node address. (0 is typically used for the first SUSIC module, but enter whatever number is in the address switches on your SUSIC controller board.)
      • Select "USIC_SUSIC" for node type.
      • Leave DL at zero.
      • Select "24-bit" or "32-bit" for card size, depending on whether you have the original 24-bit or newer 32-bit DIN and DOUT cards.
      • Use the table below to configure your cards and tell JMRI which card addresses have input cards and which have output cards. For each card you've installed, click where it says "No Card" and select "Input Card" or "Output Card". Note that the input and output cards may be in any order, but there must be no empty slots before the one following the last installed card. (This is a C/MRI hardware requirement.)
      • Click "Add Node"
      • Click "Done"
    • Back on the "Preferences..." panel, click "Save", and say yes when it asks if you want to quit.
  3. Restart the program. You need to assign an input bit to start polling. Select Sensor Table from the Tools menu, and proceed:
    • Click "Add..." at the bottom of the table.
    • In the Add New Sensor dialog:
      • For system name, enter CS1 if your SUSIC's node address was 0, or else enter CSn001, where n is your SUSIC's node address.
      • For user name enter "Test".
      • Click "OK".
    • The system name and user name will appear in the sensor table. The state of your sensor in the sensor table will initially be "Unknown", but will quickly switch to "Inactive" when polling begins (assuming nothing is connected to input pin 1).

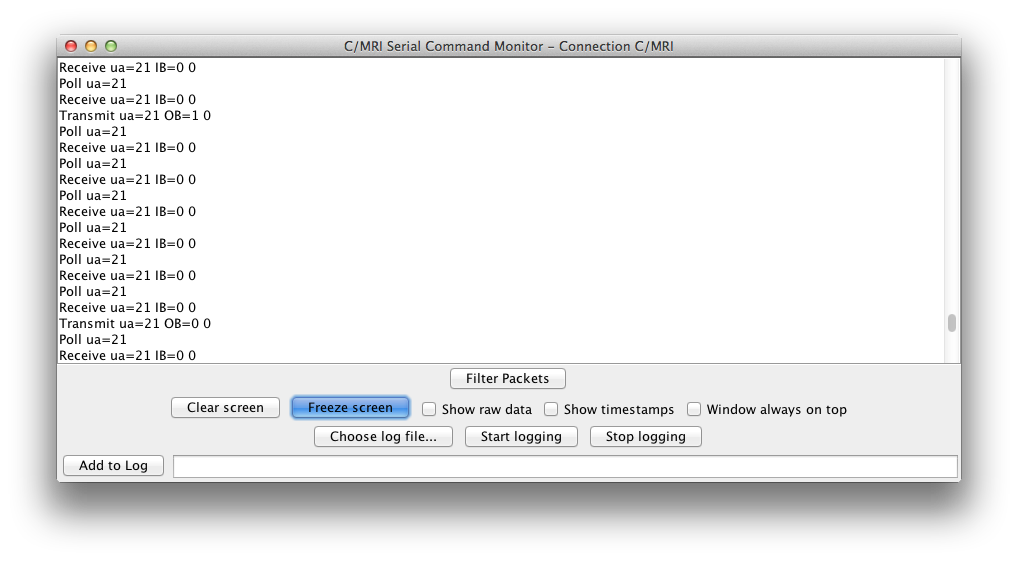

    The transmit and receive LED's on your SUSIC controller board should now be flashing, indicating that the computer and the SUSIC are talking.
  4. To check that the input bit (sensor) you assigned is working, connect a jumper wire from input pin 1 (the first input pin on the first input card of your SUSIC) to direct current ground. The sensor should switch to "Active". The sensor state will alternate between "Active" and "Inactive", according to whether pin 1 is grounded or not.
  5. To check that everything is working on the output side, select Turnout Control from the Tools menu. When the small Turnout Control window opens, proceed:
    • For turnout, enter CT1 if your SUSIC's node address was 0, or else enter CTn001, where n is your SUSIC's node address. This assigns output bit 1 (the first output line on the first output card of your SUSIC) as a turnout.
    • Click "Closed" or "Thrown" to turn output line 1 on and off.
    If you connect an LED in series with a resistor (ohm size depends upon the direct current voltage applied) to output bit 1, you will be able to turn the LED on and off by simply clicking "Closed" or "Thrown" in the turnout control window. Alternatively you can use a meter set to measure direct current to detect a change in output bit 1 as it is switched on and off.

You now have one C/MRI node configured and working. You may add more nodes, or edit the DIN/DOUT card configuration of this SUSIC node, by returning to the Configure C/MRI Nodes dialog (see below).

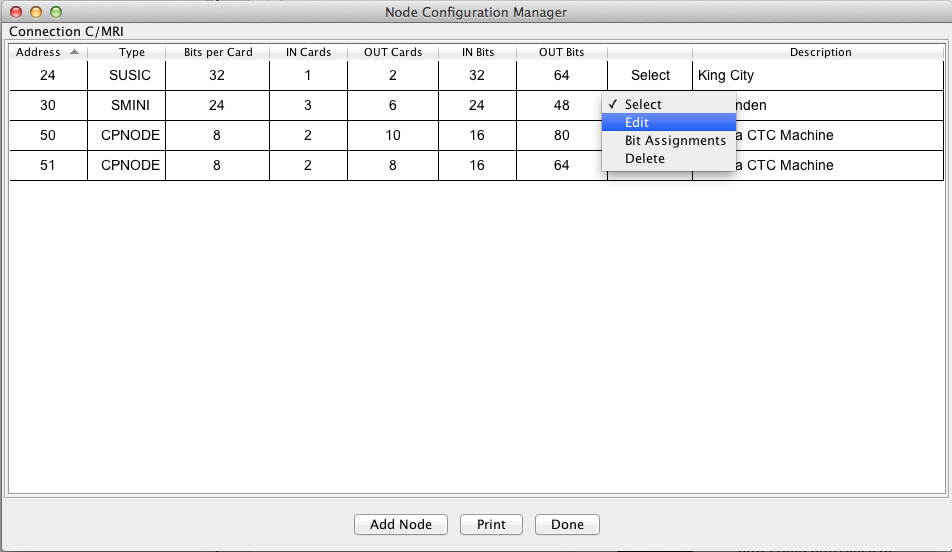

Managing Nodes

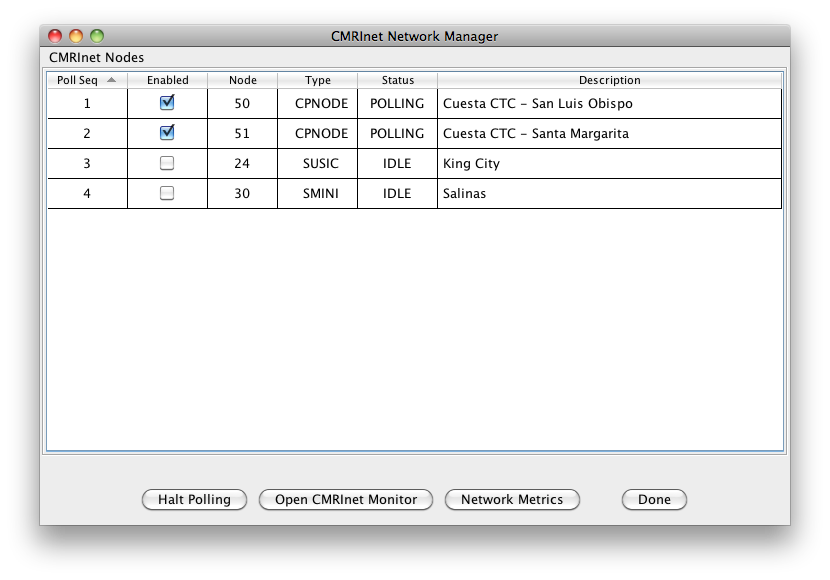

Each SMINI, USIC or SUSIC is called a "node". Before using C/MRI with JMRI, you must tell JMRI what nodes you have on your system and the configuration of each node. When you select C/MRI in the Preferences dialog, a "Configure C/MRI nodes" button is displayed. Click this button to bring up a dialog for entering node configuration information. You can add new nodes or update an existing node's configuration by returning to the Preference dialog (Edit>Preferences...) or by selecting Configure C/MRI Nodes in the CMRI menu. Make sure to save your preferences after making changes to your node configuration. Use the "Save" button in the Preferences window.

A node's address is set using the address switches on your C/MRI board. (Node addresses are called UA in C/MRI manuals.) Node addresses must be unique for each board, but need not be sequential. The node address is used in the JMRI system name to reference input and output bits belonging to that node (see below).

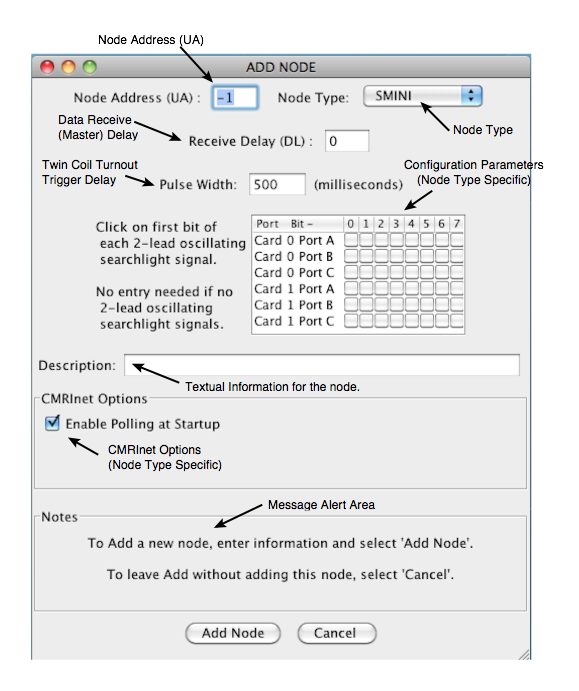

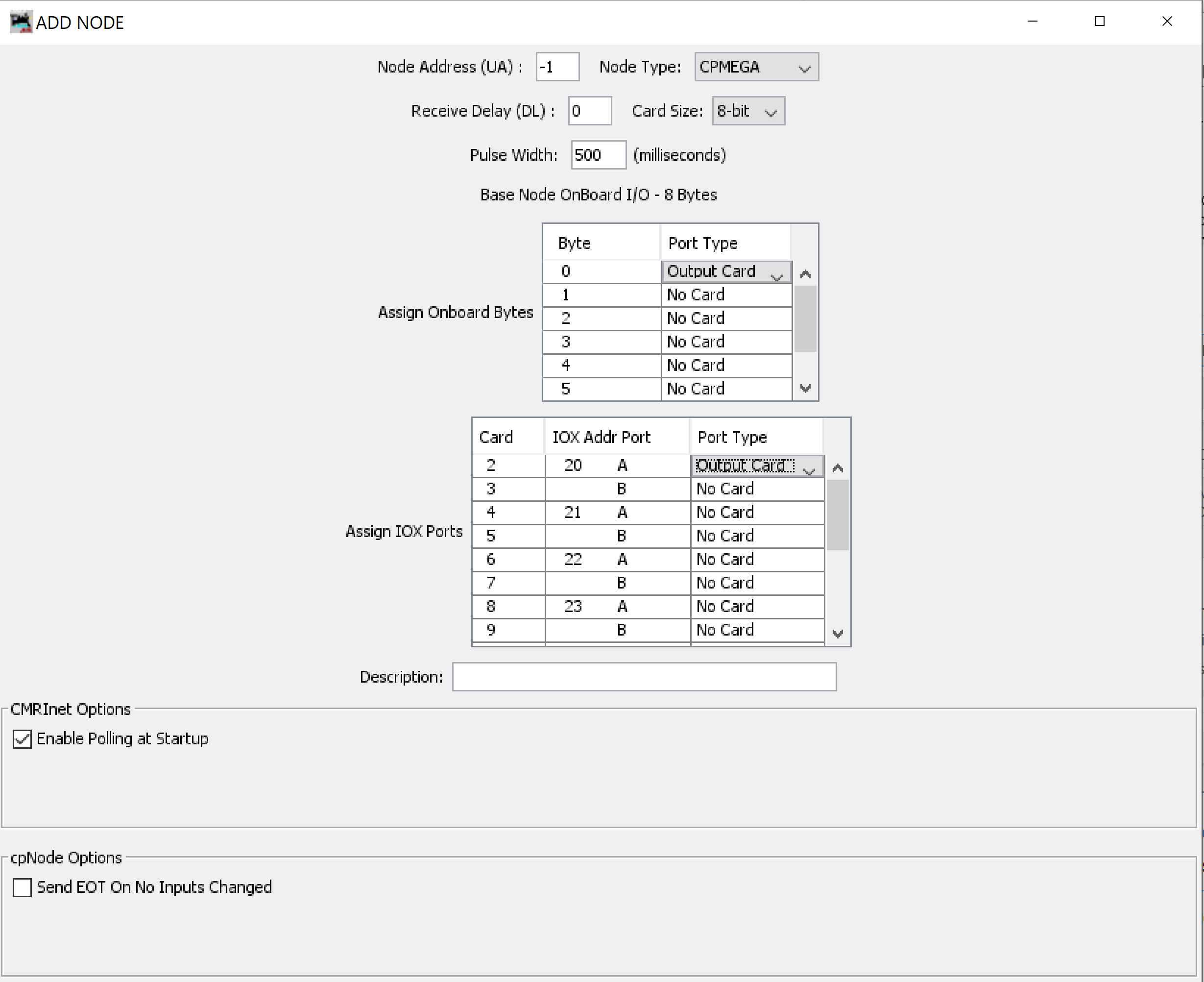

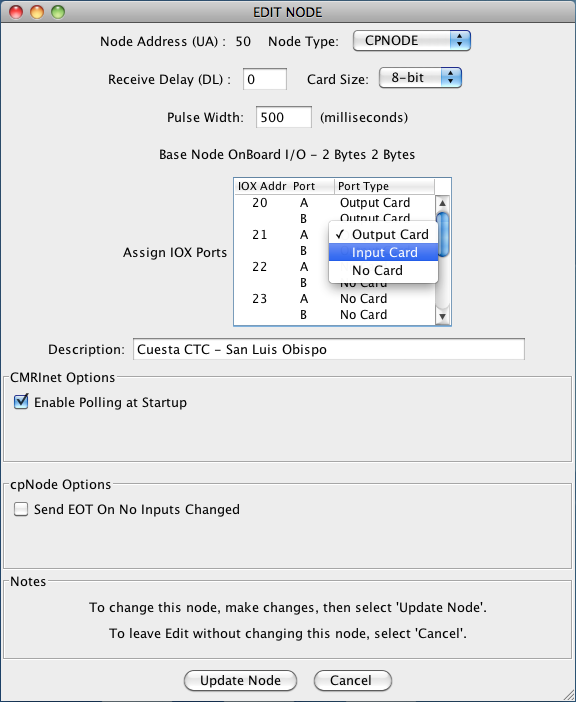

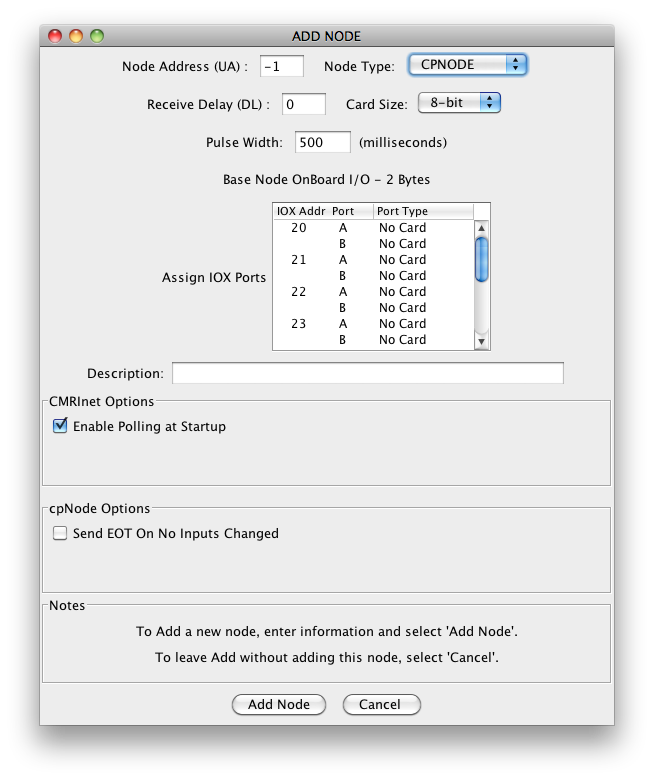

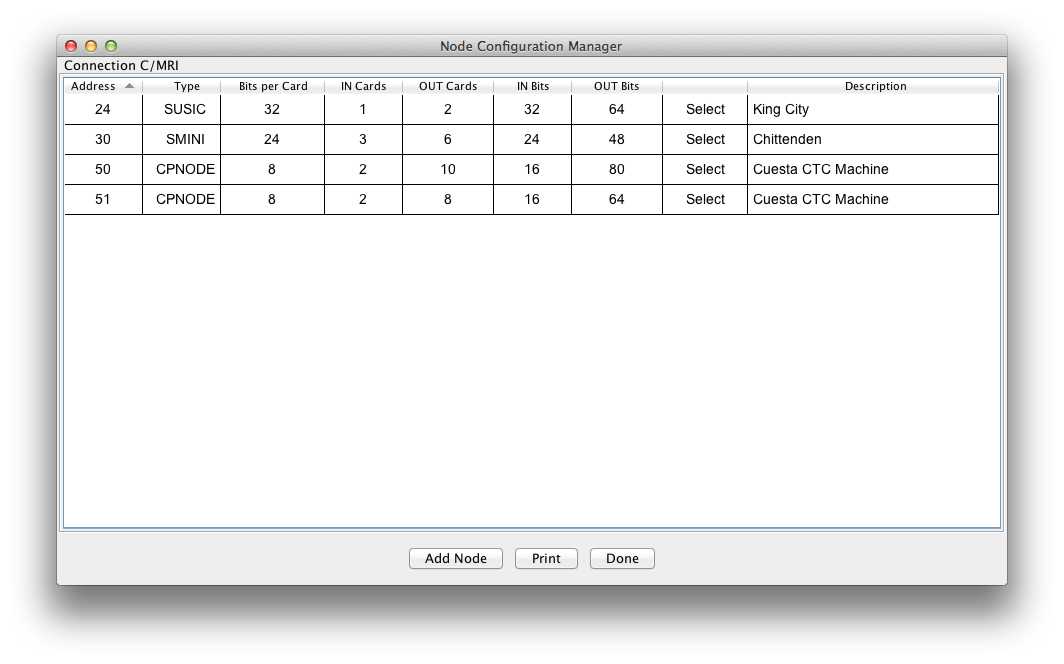

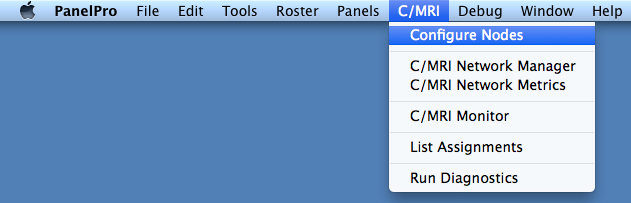

Configuring C/MRI nodes using the configuration dialog is simple. For an SMINI, simply enter the Node Address as set in the address switches on the SMINI board, select SMINI for the Node Type, and click the "Add Node" button. For a USIC or SUSIC, enter the node address, select USIC_SUSIC, select 24-bit or 32-bit cards, then tell JMRI what type cards are in occupied slots.

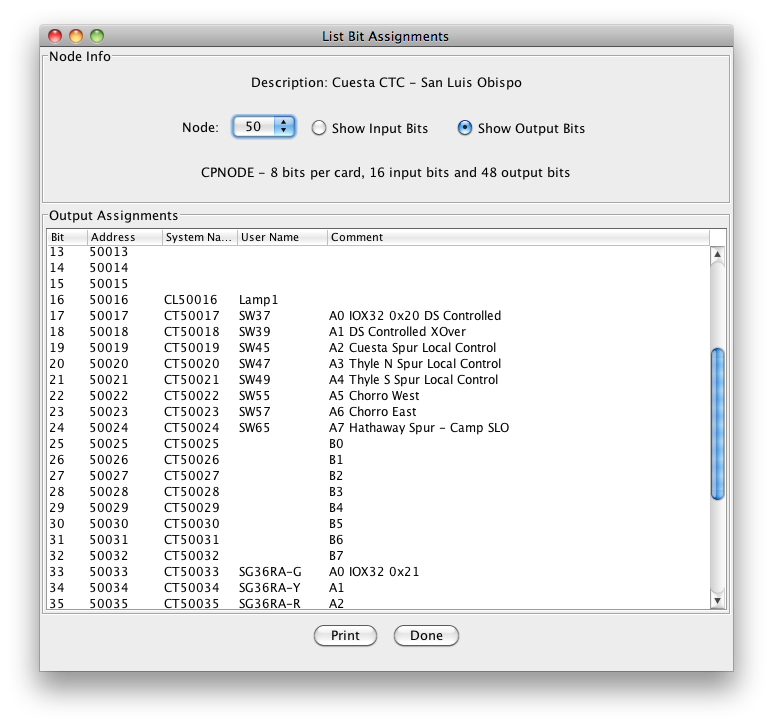

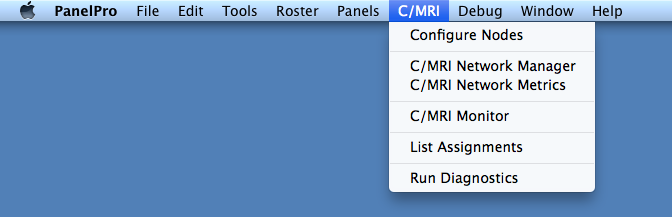

For each node, you can view a summary list of C/MRI bits that are in use and those that are available. Select List Assignments in the CMRI menu to bring up the List C/MRI Assignments dialog. Then select the node of interest from the list of configured nodes, and whether you want to view input bit assignments or output bit assignments. The assignments being viewed may be printed by clicking the Print button at the bottom of the dialog.

List Assignments is useful for checking that you have configured the correct numbers of input and output bits and the correct node address for each node. The List Assignments software works from the current C/MRI configuration, so if a node has been configured, it will be selectable in the List C/MRI Assignments dialog. The assignment table contains a line for each configured input or output bit. Each line also contains an address column showing what address to use for that bit in JMRI's C/MRI system names. Printing blank assignment lists for each node provides a convenient paper form for use in setting up your input/output bit assignments.

Numbering used in C/MRI System Names

C/MRI system names start with "C". For example, "CS24" is a C/MRI "S"ensor, the 24th input line, "CL35" refers to the 35th output line as a "L"ight, and "CT38" refers to the 38th output line as a "T"urnout (all for a node with address of 0).

For each node, inputs and outputs are numbered sequentially from 1, without worrying about the types of cards, or what type card is in what card slot. For example, if you have two 24-bit input cards, CS25 refers to the 1st input line on the second input card. If you have two 32-bit input cards, CS25 refers to the 25th input line on the first input card.

Each SMINI, USIC or SUSIC (node) has a unique address set into its hardware address switches and entered when you configured each C/MRI node (see above). Sensors and turnouts on the first node (address 0) are numbered from 1 to 999; sensors and turnouts on the second node (address 1) are numbered 1001 to 1999; etc. Note that node addresses may be sequential, but are not required to be so.

For example:

When entering Hardware information into the Add sensor window you can Enter in the Node Id, followed by the Sensor Id, seperated by a ":". This method can also be used for the alternative/extended addressing.
So for a sensor on Node 2, pin 3 you would enter the following into the hardware address field : 2:3

To summarize, input and output pins are labeled sequentially within each C/MRI node. To complete the bit address, add 1000 times the node address to the pin number. Node addresses can go as high as the C/MRI hardware allows.

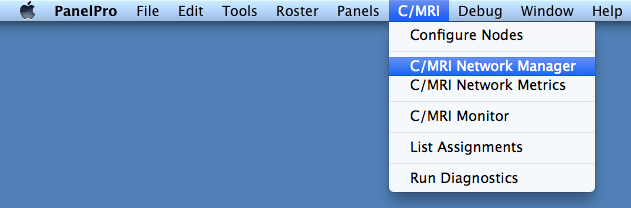

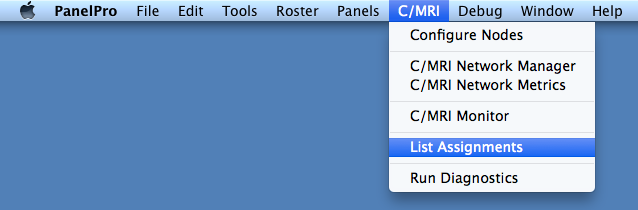

For an easy guide to input and output pins addresses, select List Assignments in the CMRI menu to access tables listing assigned and available inputs and outputs for each node. Each table has a line for each pin including an address column showing what address to use for that pin in system names.

Alternate Numbering for System Names

An alternate scheme for numbering in C/MRI system names was developed to give user access to the full number of lines allowed by C/MRI hardware design. The main numbering system (documented above) allows access to 999 input and output lines on each node. The C/MRI hardware design, however, supports many more bits for USIC and SUSIC nodes. Most JMRI users will never need this alternate scheme, and should use the main numbering scheme.

The alternate numbering scheme is similar to the main numbering scheme, except the node address and bit number are separated by a "B", and both node address and bit number can range to any value supported by C/MRI. For example, CS1B13 refers to input line 13 of a node with address 1, and is equivalent to CS1013 in the main numbering scheme. Also CT2B1109 refers to output line 1109 of a node with address 2, and there is no equivalent in the main numbering scheme. Users may use either numbering scheme interchangeably for line numbers up to 999, but must use the alternate numbering scheme for line numbers greater than 999. For ease in communicating with other users, using the main numbering scheme is recommended unless bits greater than 999 need to be addressed.

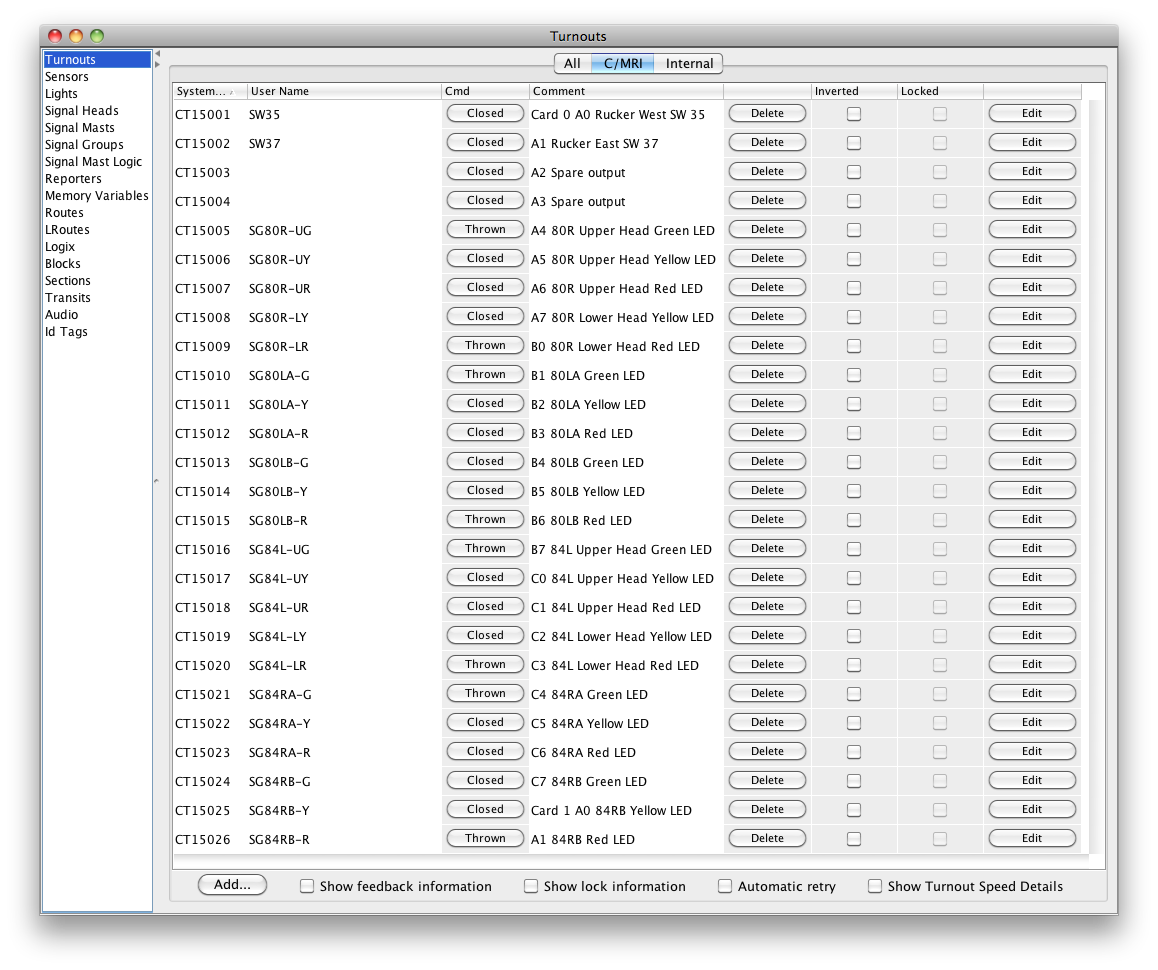

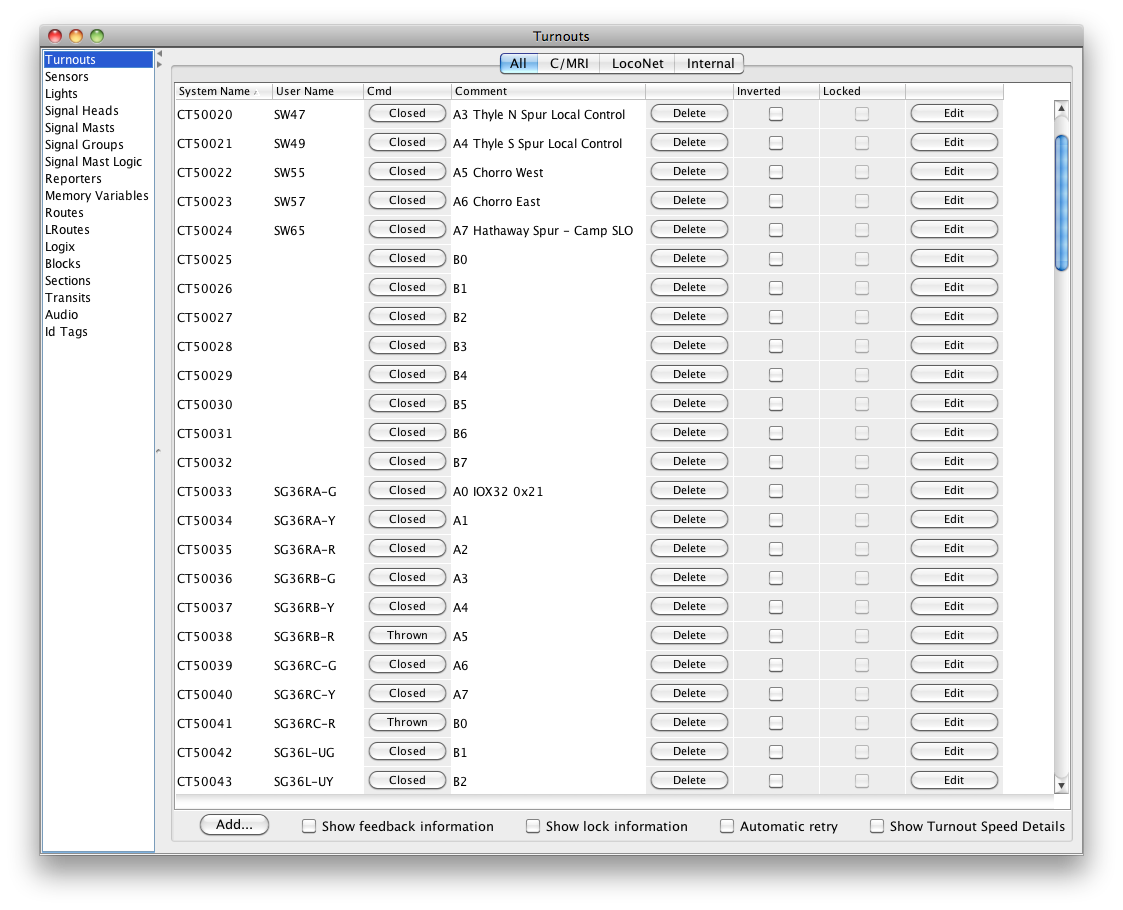

C/MRI Turnout Control Options

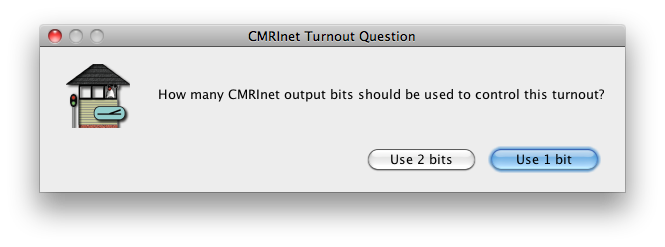

Turnouts (switches) may be controlled using one or two output bits. When a turnout is created using the Add option in the Turnout Table, the user is asked whether the turnout is to be controlled using one or two output bits.

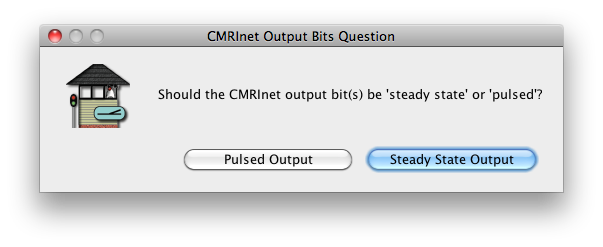

If one-output-bit control is selected, the user must select either 'steady state' or 'pulsed' control. If 'steady state' is selected, then that output bit is set "Off" for CLOSED ('normal' in C/MRI manuals) or "On" for THROWN ('reverse' in C/MRI manuals). When setting the output bit, JMRI compares the requested state to the state indicated by the current value of the output bit. If these states are different, then the output bit is set as indicated above. If these states are the same, that state is compared to the state indicated by turnout feedback. If the states are the same, no action is taken since the turnout is already in the requested state. If the states are different, the turnout was probably changed by some means separate from JMRI. To ensure the turnout is actually set to the requested state, the output bit is first changed to match the state indicated by the turnout feedback, then one second later it is changed again to match the requested state. This guarantees a change of state for those turnout control devices that require a change in state to actually move the turnout.

If one-output-bit with pulsed control is selected, the output bit is "Off" when nothing is happening. When CLOSED or THROWN is requested, this request is compared to the known state of the turnout (which follows turnout feedback). If the known state indicates the turnout is already in the requested state, nothing is done. If the known state is different from the requested state, then the bit is 'pulsed'. A 'pulse' consists of the bit being turned "On" for one second, then returned to the "Off" position.

If two-output-bit control is selected, the bit referenced in the turnout system name (see above) and the next bit in sequence are used to control the turnout. For example, if CT33 has two-output-bit control, the 33rd and 34th bits are used to control the turnout. If two-output-bit control is selected, the user must select either 'steady state' or 'pulsed' control. Steady state control should be selected for stall motor turnouts, such as a Tortoise, if it is being controlled according to the recommendation in Chubb's C/MRI User's Manual, Version 3.0, page 3-12. With steady state control, for CLOSED, the first bit is set "Off" and the second bit is set "On"; for THROWN, the bits states are reversed, i.e., the first bit is set "On" and the second bit is set "Off".

If two-output-bit control with pulse control is requested, both bits are "Off" when nothing is happening. When CLOSED or THROWN is requested, this request is compared to the known state of the turnout (which follows turnout feedback). If the known state indicates the turnout is already in the requested state, nothing is done. If the known state is different from the requested state, then the first bit is pulsed if CLOSED is requested, or the second bit is pulsed if THROWN is requested. In either case, a 'pulse' consists of the bit being turned "On" for one second, then returned to the "Off" position.

Note that to have two-output-bit control, a turnout must be created using the "Add" button in the Turnout Table.

Finally, the "inverted" option can be selected. This controls how the C/MRI hardware implements the "On" and "Off" used in the description above. Normally (invert option not selected), "On" refers to a "1" to the hardware; with standard C/MRI hardware, this pulls the output pin down and allows it to sink current. "Off" the corresponds to a "0" to the hardware, turning the output pin off, and causing it to stop sinking current.

When "invert" is selected, "On" results in a "0" sent to the hardware, and "Off" results in a "1" being sent. This causes the hardware to act with the opposite polarity.

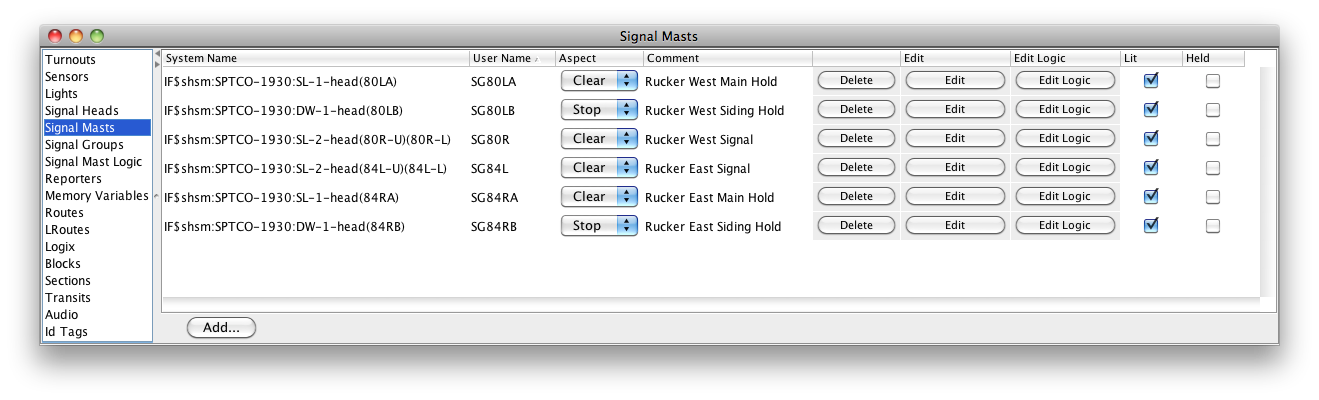

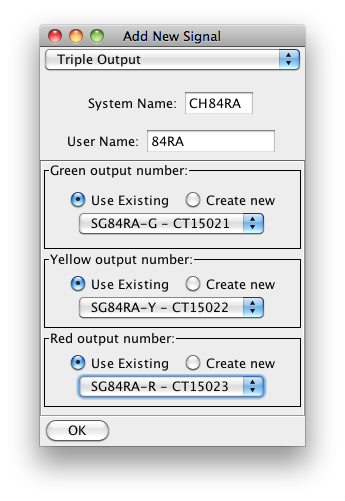

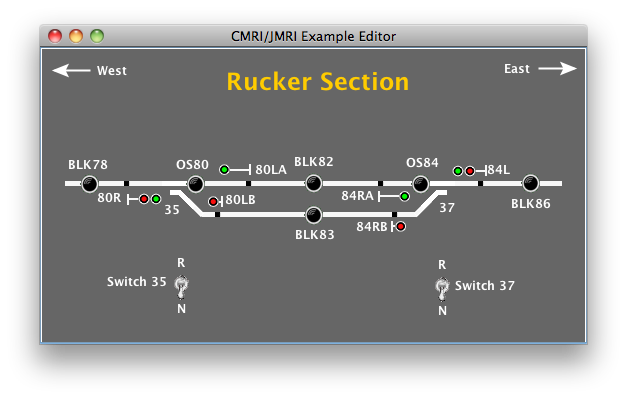

Wiring Signals

JMRI can work with all the popular ways of wiring signals to C/MRI hardware (and there are a lot of them!) For information on how to configure your signals to the program, please see the C/MRI signals page.

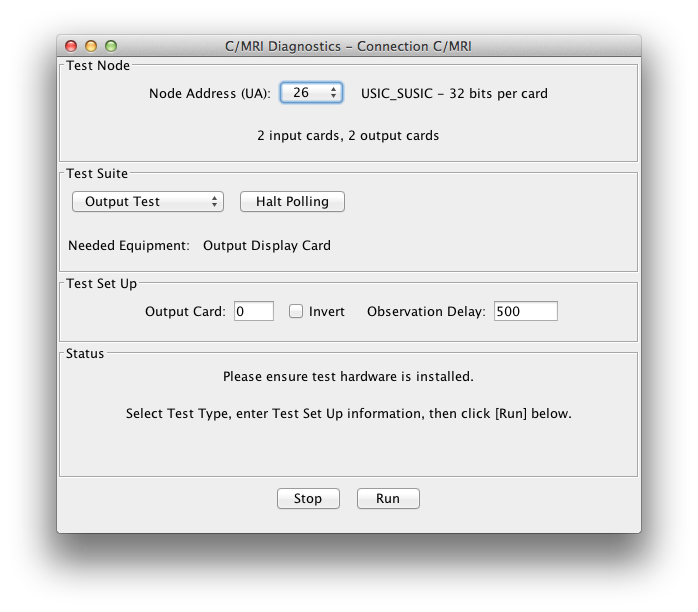

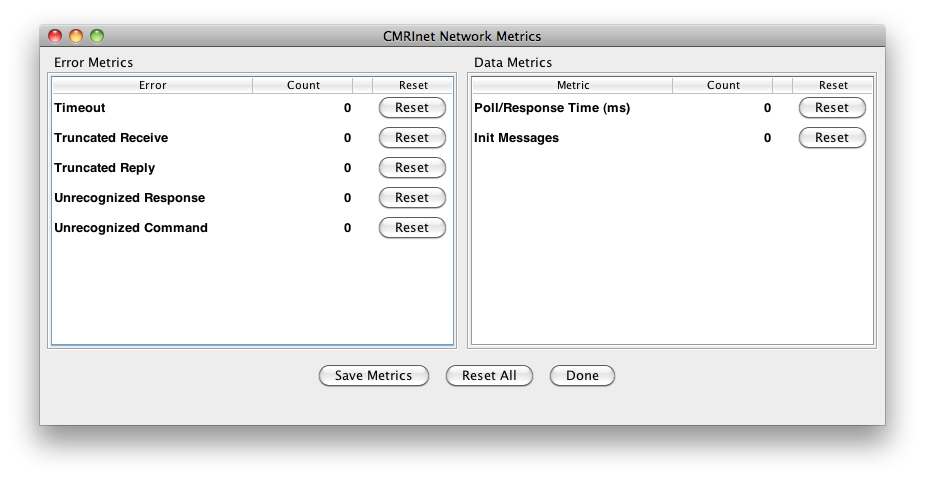

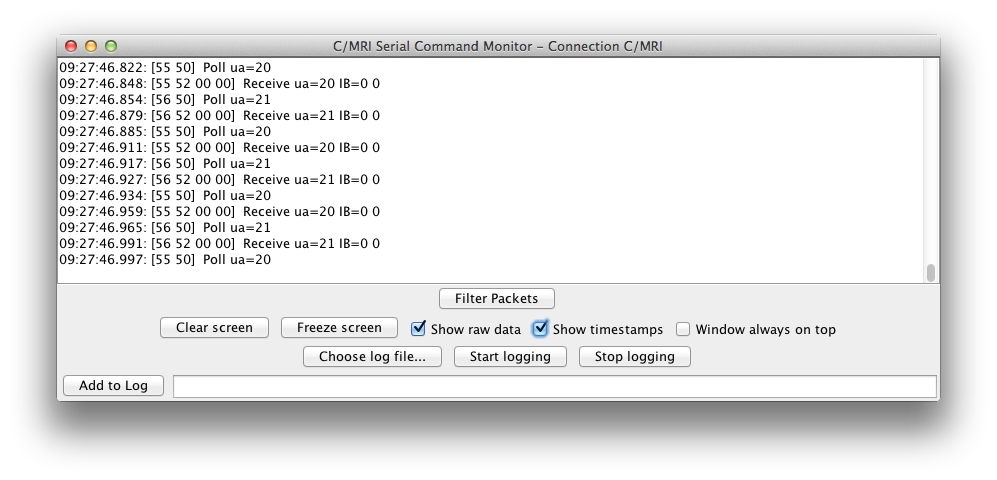

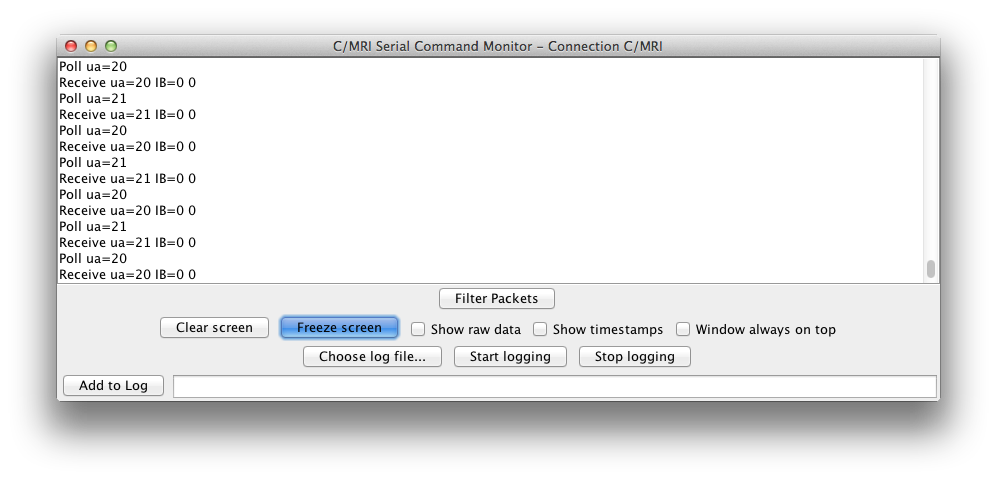

C/MRI Diagnostics

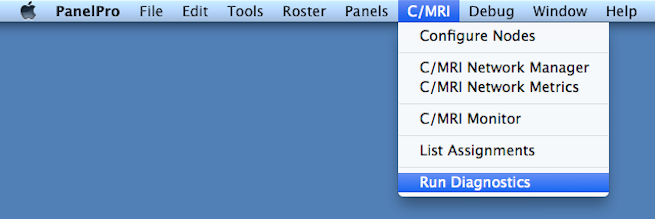

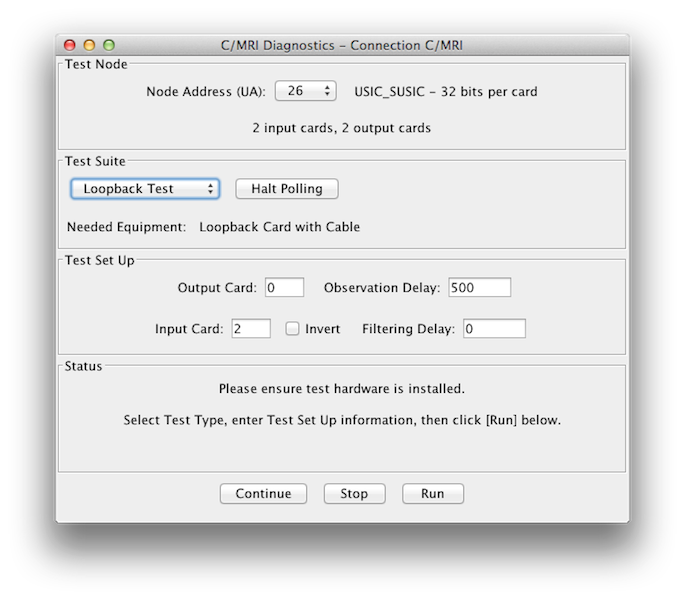

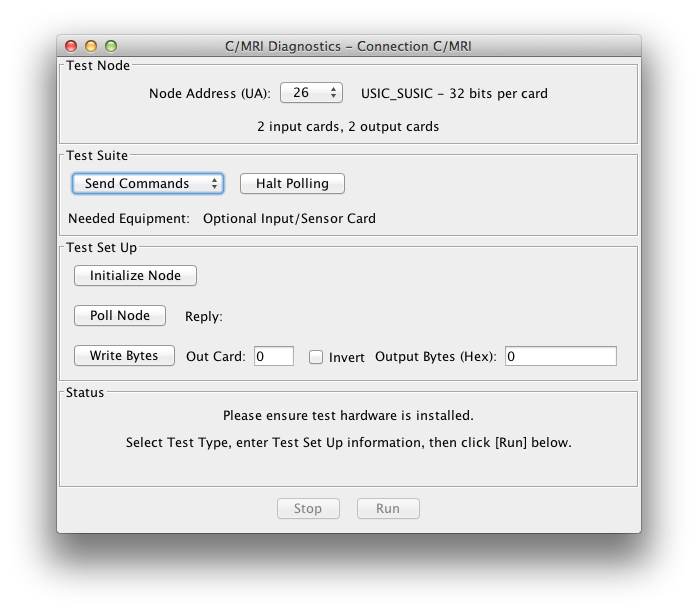

JMRI supports the two automated diagnostic procedures mentioned in Chapter 6 of Bruce Chubb's C/MRI User's Manual, Version 3.0. Diagnostics are useful for checking the functioning of your C/MRI hardware. These automated procedures are controlled via a dialog available by selecting Run Diagnostic in the CMRI menu. The Wraparound Test requires a special wraparound test cable, and the Output Test requires a special output test card. Both devices are described in the above reference. Any other connections to input or output bits on the card(s) being tested should be unplugged when these tests are run. The diagnostics are easy to use. Simply follow the instructions presented in the Run C/MRI Diagnostic dialog. Any errors found are reported in the status box of the dialog.

Using USB-serial adapters

Most C/MRI systems use RS485 electrical signals to communicate between the nodes and the computer. There are several ways to generate them:
  1. If your computer has a built-in serial port (RS232 connection), you can use an RS232-to-RS485 convertor. There's one you can build as part of the C/MRI system, or you can buy a commercial one.
  2. If your computer has a USB port, you can buy a commercial USB-toRS485 adapter and use that.
  3. If your computer has a USB port and you have a RS232-to-RS485 convertor, you can install a USB-to-RS232 adapter (sometimes called a "USB-to-serial converter"), then connect the RS232 output of that to the RS232 input of the RS232-to-RS485 convertor. Note that if you're using the Chubb RS232-to-RS485 converter, some USB-to-RS232 adapters will require that you connect certain RS232 control leads that are not handled by the Chubb convertor:
    • DSR - DTR (pins 4&6 on the DB9 connector)
    • RTS - CTS (pins 7&8 on the DB9 connector)
In all cases, the communications line will end up appearing as a serial port on your computer. In Windows, this is a COMn port, in other computers it's a named serial device. You'll have to select the proper one when configuring JMRI.

Running JMRI when disconnected from your C/MRI system

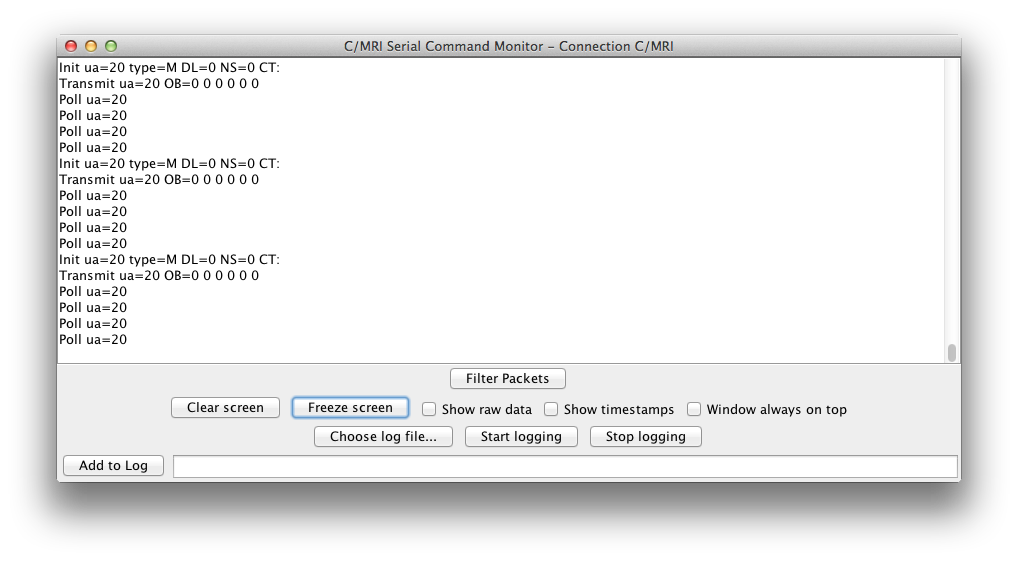

JMRI continually polls the C/MRI hardware for status changes. If one or more C/MRI nodes are not responding, eventually their inputs (Sensors) are set to the UNKNOWN state to indicate that JMRI has lost contact with those devices on the layout.

Although this is the right thing to do when you're really connected to the hardware and trying to operate the layout, it can get in the way if you're running JMRI without your layout connection. You might want to do this, for example, to work on your panels while away from the layout, or while the layout needs to be powered off for some reason.

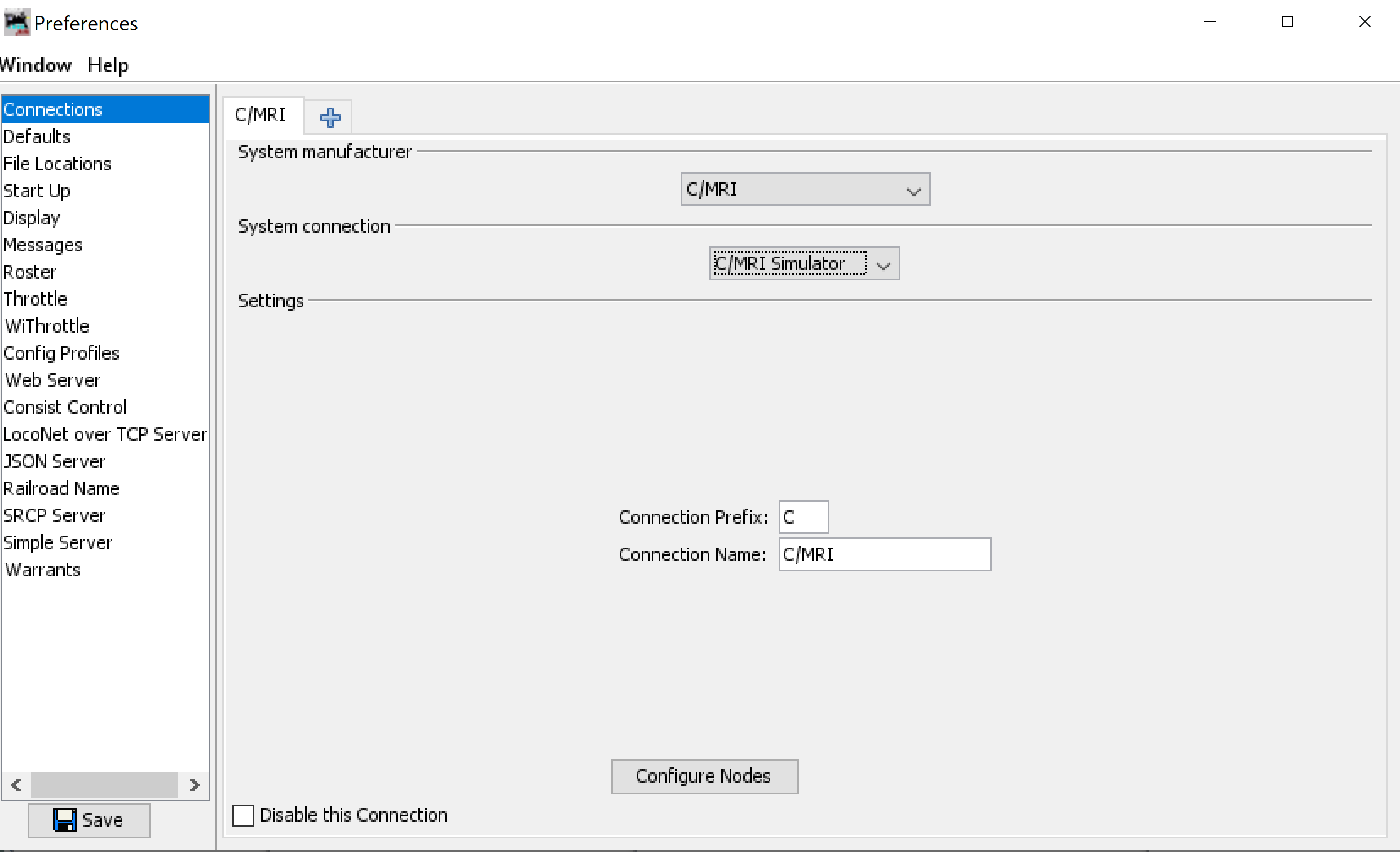

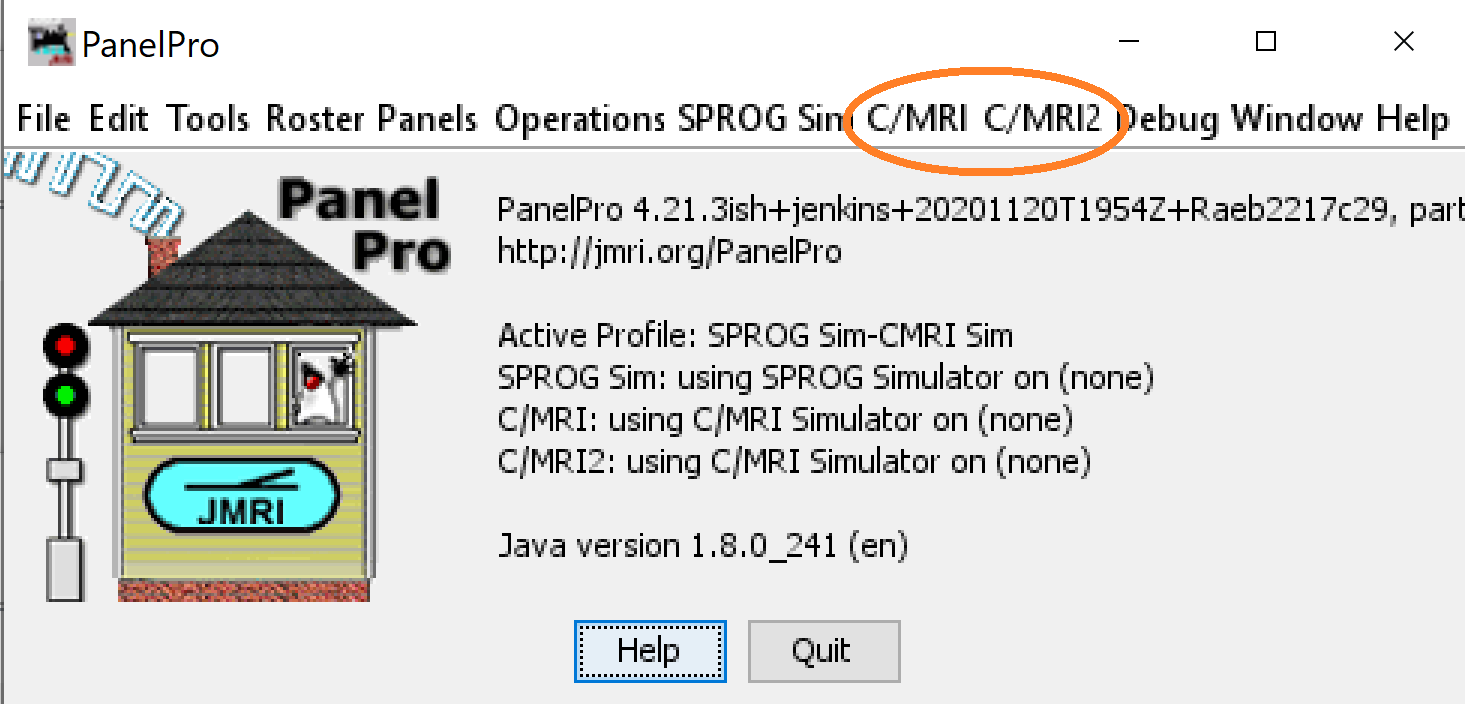

To accomodate using JMRI without an active layout connection, in the JMRI 2.3.2 release a "C/MRI Simulator" connection was made available in the preferences.

Please note that this is only meant for users who already have a working C/MRI connection already configured. Please do not try to use the C/MRI simulator before configuring a valid connection to C/MRI hardware, as it will not work.

Once you have your C/MRI connection configured, when your hardware is not available you can just go to the JMRI preferences, select "C/MRI Simulator", save preferences, quit and restart. Don't change any other settings!

When the C/MRI hardware is again available, go the JMRI preferences, select "C/MRI Serial", save preferences, quit and restart.

More info

For more information on C/MRI (including the C/MRI User Manual), please see the

JLC Enterprises web site, the C/MRI yahoo users group, and the Easee Interfaces web site.
