OperationsPro: Locomotive Window Menu Bar

Tools

• Locomotive Roster
  • Import from JMRI roster
  • Import from file
  • Export to file

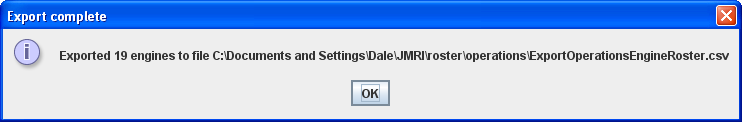

    Saves the Roster to your Operations\Export folder and displays the Export complete dialog. The file is exported automatically as a .csv file.


  • Delete all locomotives

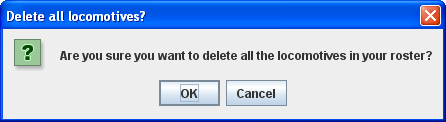

    Opens the Delete all locomotives? dialog. OK will delete all Locomotives in the Operations Roster; Cancel will abort the deletion.


  • Reset move count all locomotives

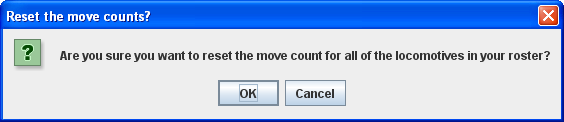

    Allows resetting all locomotive move counts.

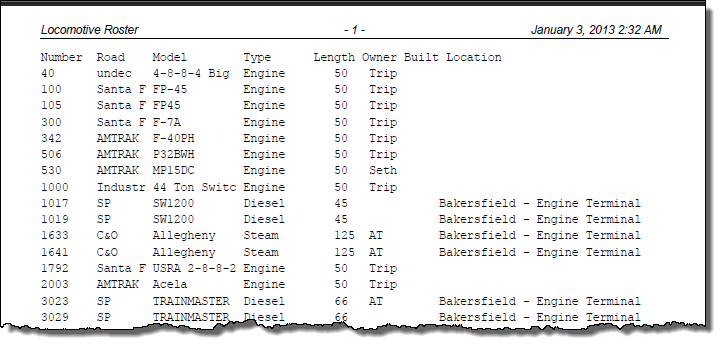

  • Print -- Opens your computers Print window and will print your locomotive roster.



  • Preview

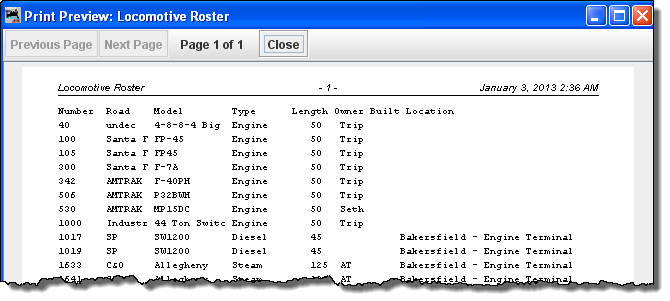

    Opens your computer's Print Preview window and shows a preview of your Locomotive Roster.


• Synchronize with NCE Consists (only active with an NCE connection; greyed out for LocoNet)

Operations - same as DecoderPro® Operations menu

Window - same as other JMRI® menus.

Help - same as other JMRI® menus.
