Using JMRI® to Operate Trains

OperationsPro: Add Locomotive window

The Add Locomotive window is displayed.

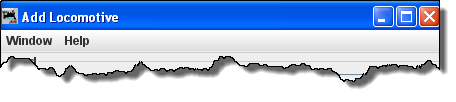

Add Engine Menu

The Add Locomotive pane's Window and Help menus are the standard JMRI® menus used on most JMRI windows.

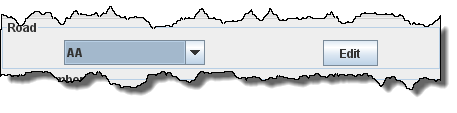

road

Select the Road for the engine. If the desired Road Name abbreviation doesn't exist, press Edit to open the Edit Locomotive Attributes dialog for Road.

Engine number

Enter the Locomotive's Road Number Use the Clear button to remove your entry if you make a typing error.

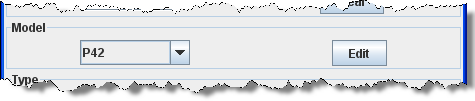

Engine Model

Select the Locomotive Model If the model you need is not in the list then press span class="textbutton">Edit and the Edit Locomotive Attributes dialog for Model will open.

The program allows you to organize your engines by Model. Each Model can only have one engine Type, length, weight and horsepower rating associated with it. For example, if you assign the model name "RS11" to a set of locomotives, when you change the length of one of the RS11's, the length will also change for the others.

Engine Type

Now select the locomotive's Type If the type you need is not in the list then press Edit and the Edit Locomotive Attributes dialog for Type will open.

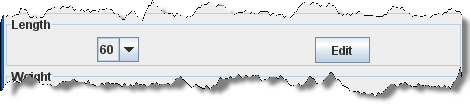

Engine Length

Now select the locomotive's Length If the length you need is not in the list then press Edit and the Edit Locomotive Attributes dialog for Length will open.

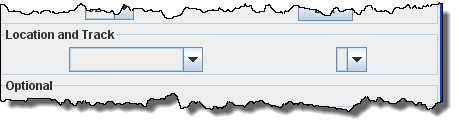

location and track Select the locomotive's current (starting) Location and the locomotive's Track

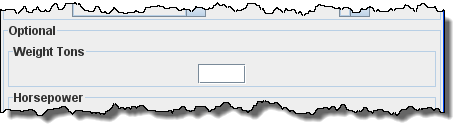

weight Optional: Enter the weight of the locomotive in tons
Engine Horsepower

Now enter the engine's Horsepower . The locomotive's horsepower, the train's weight, and track grade is used by OperationsPro to calculate how many engines are required when using the "Auto" feature when building Trains.

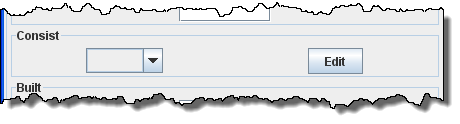

consist

If you wish this locomotive to be part of an Optional Consist , press Edit which opens the

consist where you may enter a new Consist Name. Then select the Consist Name from the drop-down list.

Synchronize with NCE Consists

If you are using NCE as your DCC command station, you can have the program synchronize your consist numbers with your locomotives. The program will read all of the consists out of your NCE system and then will search for matching locomotives in your OperationsPro Roster. The program will assign the Consist Name nce_xxx where xxx is the NCE consist number. To synchronize your consists, select "Synchronize with NCE Consists" under the "Tools" menu (dimmed when no NCE Connection is set).
Built You may enter an optional Built date
owner Owner , if the owner's name is not in the list press Edit which opens

owner

where you may enter the owner's name. Then select the Owner Name from the drop-down list.
comments Type your Comment
Buttons

The Add button adds another engine.

The Delete button deletes the currently visible Locomotive.

to store the engine's settings. OperationsPro will create a file (OperationsEngineRoster.xml) in your JMRI directory in a folder called "operations". A backup file with the last settings for all of your engines is also created each time the Save button is pressed.

Now that you have your Locomotives stored in the Engine Roster, you will need to add Routes that your Trains will use to operate on your layout.
