DecoderPro® Main Window

Tools Menu

Programmers

• Single CV Programmer

Opens the Simple Programmer

• Service Mode Programmer

Opens the Service Mode Programmer.

• Ops-Mode Programmer

Opens the Ops-Mode Programmer.

• Multi-Decoder Control

Opens the Multi-Decoder Control window.

Tables (advanced users, beyond the scope of this manual)

A series of tables that are used with PanelPro Panels to automate your layout.

Throttles

• New Throttle...

Opens a Throttle window (more than one throttle may be in use at a time)

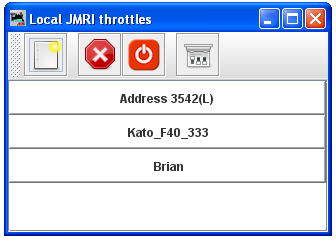

• Throttles List Window

Opens the Local JMRI throttles Window,


		Opens a new Thottle
		Emergency stop for all Throttles under JMRI control
		Track power control

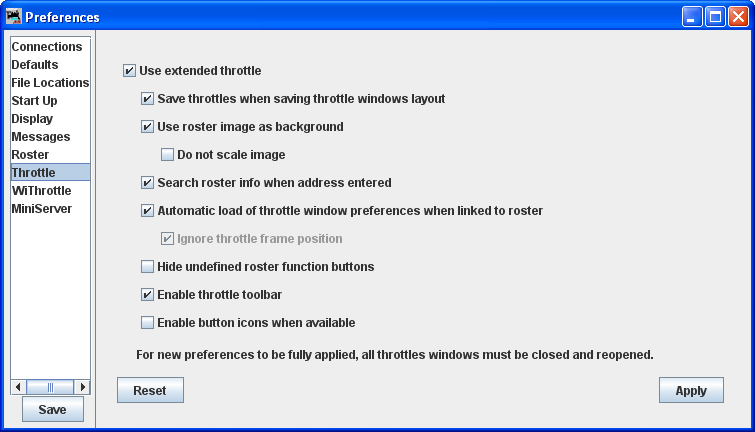

		Opens the Throttles preferences window

Use Throttles preferences window to set the desired preferences.



• Save Throttle Layout...

Displays the Save dialog box to save your throttle as an XML file to the default folder, in Windows XP: C:\Document and Settings\userName,\JMRI,\throttles. This can be changed in the save dialog box.

• Open Throttle Layout...

Displays the Open dialog box allowing you to select a throttle file that has been saved in the default folder above, or the location of your choice.

• Save as Default Throttle Layout

Saves your current Thottle as the default layout

• Load Default Throttle Layout

Loads the Throttle that you saved as the default

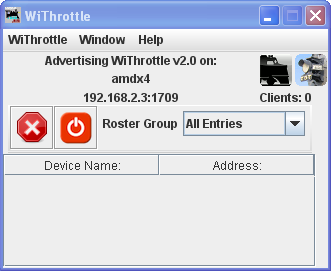

• Start WiThrottle

Consisting Tool...

Opens the Consist Control window.

Clocks

• Setup fast Clock...

Opens Fast Clock Setup window

• Nixie Clocks

• LCD Clock

• Analog Clock

Power Control...

Opens the Power Control Panel, which allows you to turn the power to layout ON/OFF

Turnout Control...

Simple Signal Logic (advanced users, beyond the scope of this manual)

Sensor Groups.... (advanced users, beyond the scope of this manual)

Speedometer...

Light Control...

Dispatcher... (advanced users, beyond the scope of this manual)

Send DCC Packet... (not covered in this manual)

USS CTC Tool (advanced users, beyond the scope of this manual)

Operations(Covered in JMRI® Operations User's Guidee)

Start JMRI Web Server

Starts a Web Server on your computer. You can access the Index.shtml page using the URL displayed in the dialog.

The JMRI web server is meant to be a quick and easy way for model railroaders, not Masters of the Web, to get a web connection to JMRI up and running.
