Using JMRI® to Operate Trains

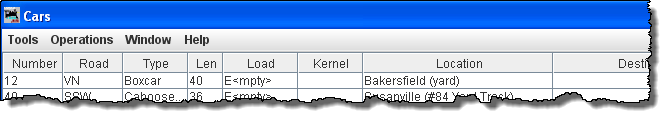

OperationsPro: Cars Window Menu Bar
Opens the Open dialog box, to import a roster of Cars if you already have a list of cars in a database. The import function requires an ACSII text file, with one line for each car. The Car import requires four attributes and the order is:
car number, road name, type, and length.
An example of a correct format:
336 GCR Flat 40
655579 UP Boxcar 40
Optionally you may include additional attributes in the following order: weight, color, owner name, date built, and location.
Check the Cars pane Help menu file for further information.

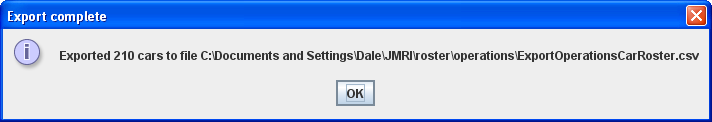

- Export to

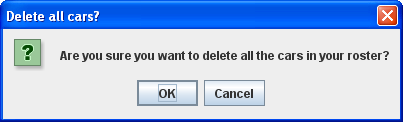

- Delete all

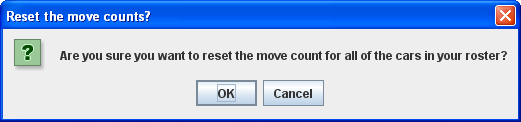

- Reset move count

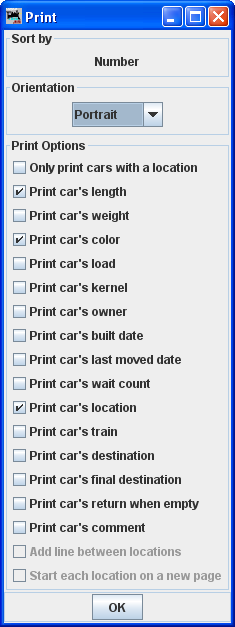

- Print Window opens with Roster Printing options;
Check all attributes that you want on print out.

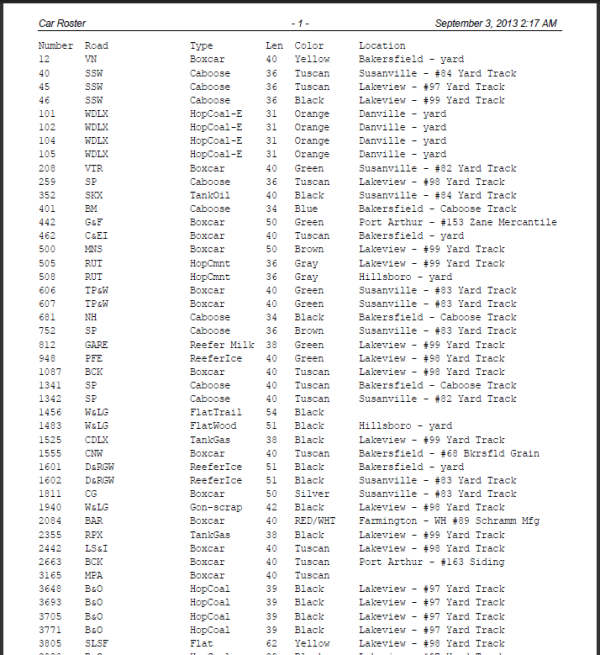

Print window as above opens, opens output in the Printer Preview window (shown at right).
- Import from file
- Modify Locations by Car Type
- Modify Trains by Car Type
- Set Cars
