Using JMRI® to Operate Trains

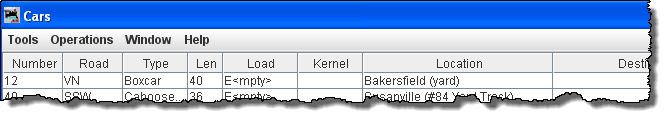

Operations Cars Window Menu Bar

• Roster -->
  • Import from File
    Opens the Open dialog box, to import a roster of cars if you already have a list of cars in a database. The import function requires an ACSII text file, with one line for each car. The car import requires four attributes and the order is car number, road name, type, and length. An example of a correct format:

  336 GCR Flat 40
  655579 UP Boxcar 40

  Optionally you may include additional attributes in the following order: weight, color, owner name, date built, and location. Check the Windows help file for further information.

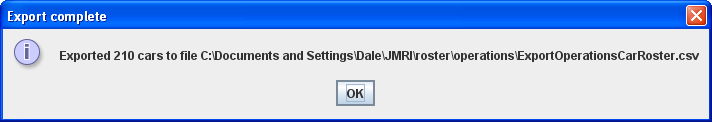

  • Export to File

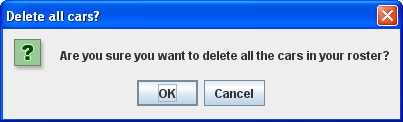

  • Delete all Cars

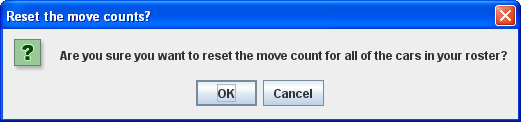

  • Reset move count all cars

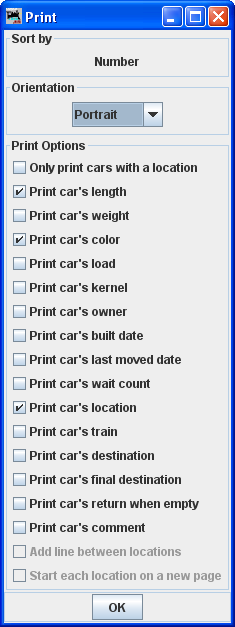

  • Print -- Print Window opens with Roster Printing options. Check all attributes that you want on print out.




  •

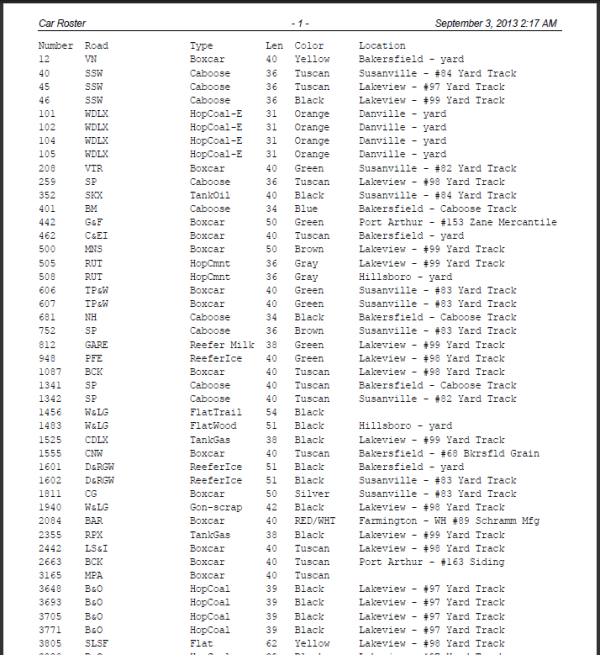

  • Print Preview
    Print window as above opens, opens output in printer preview window.
• Modify Locations by Car Type
• Modify Trains by Car Type
• Set Cars

Operations

• Settings

  Opens Operations Setting window.

• Locations

Opens Locations window.

• Cars

Opens Cars window.

• :Locomotives

  Opens Locomotives window.

• Routes

  Opens Routes window.

• Trains

  Opens Trains window.

Window

Help
