Throttle Window Menu Bar
Opens new copy of the throttle

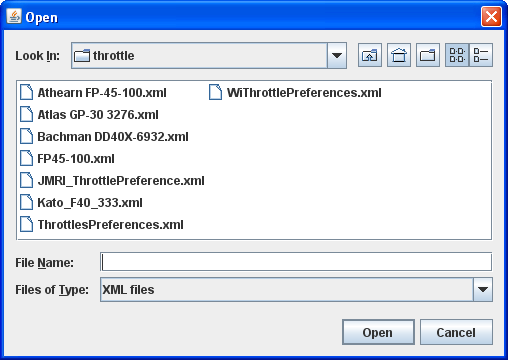

Select a saved throttle XML: file.
Save a throttle file that has been opened and modified

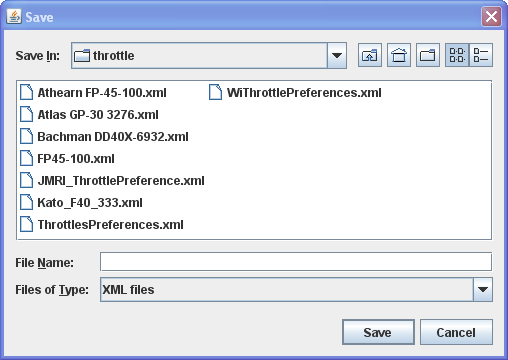

Opens the Save dialog to allow you to save the Throttle XML file in the location you select and using the name you specify
Opens Throttle layout that you select.
Save Throttles Layout to file in Throttle Folder
Load the default throttle layout from Throttle Folder
Save as the default throttle layout from Throttle Folder
Opens the Edit Throttle Frame dialog and allows you to edit the current throttle window title and selected Frame properties.
Allows you to select which of the three panels of the throttle are being shown. Place a check mark in each of the panels that your want to display.
You may ask yourself, “Why would I want to turn off any of these panels?” As only one example, let’s say we have an observation car at the rear of a passenger train. We could equip this car with a function only decoder to control:
- Interior lights,
- Rear marker lights, and
- A rear Drum light.
We have no need for the speed control pane and only need three function buttons for this “Throttle”.
With a whole passenger train equipped like this, lots of screen space can be conserved by using the throttle set-up files to optimize the Throttle windows. Then you could turn off the lights in the kitchen and lower the lights in the dining area so the passengers can enjoy the sunset as they transit the Rockies enjoying the beautiful sunset sipping Cognac…. but I digress. You get the idea.
Resets all the Function buttons to the default settings, , , etc.
Returns all the throttle panels to the throttle frame.

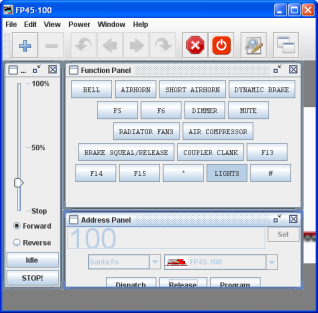

Frames on.

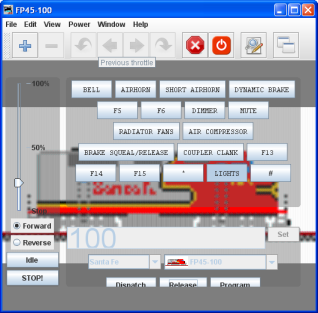

Frames off
