Using JMRI® to Operate Trains

Edit Route Window

Back

Back to Index


Panel showing possible routes that are available on your railroad. We are going to edit the Bakerfield to Fremont Route..

panel

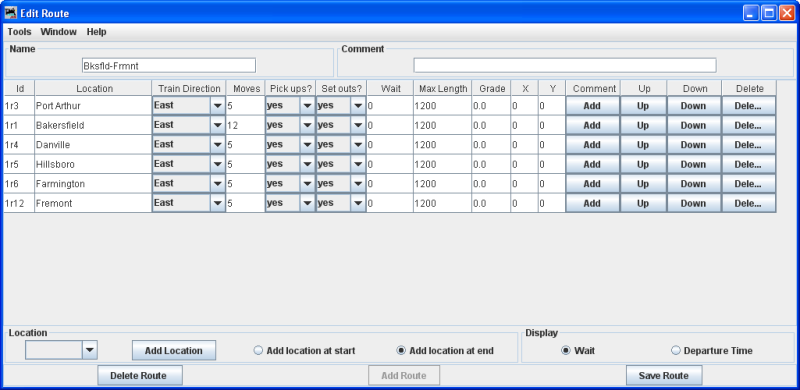

route edit

Menu Bar

menu

Tools

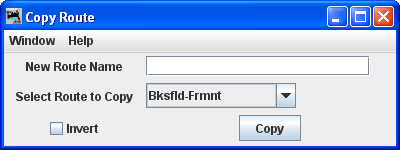

copy

Type the New Route Name

Select Route to Copy this route will be copied and saved with the new name.

Invert will reverse the sequence of the route when copied.

press to copy the route into your Route file.

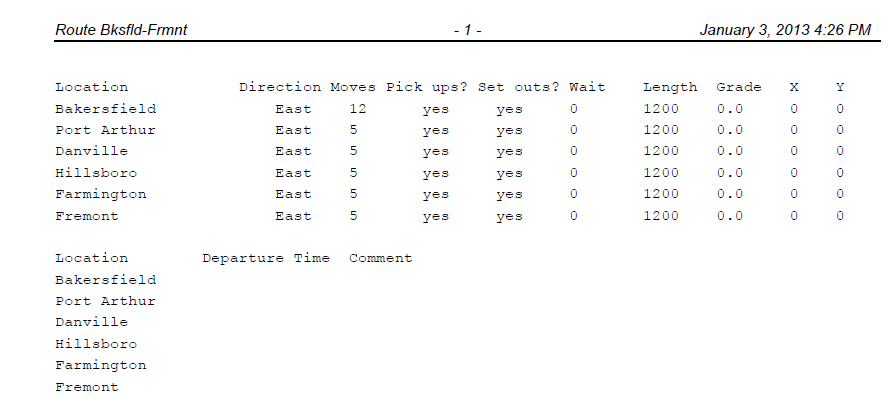

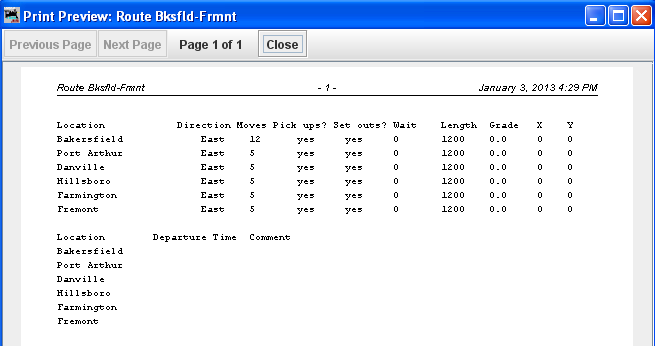

print


Window -- Standard JMRI® window menu.

Help -- Standard JMRI® Help menu.

Route Table - The stops and location on the route

detail

Location -- as defined in locations
Train Direction -- change using drop-down list.
Moves -- number of moves required for route
Pick ups? -- change using drop-down list.
Set outs? -- change using drop-down list
Wait -- Time to wait
Max Length -- Length of spur
Grade -- Percent of grade at location
X -- Coordinate
Y-- Coordinate
Comment -- Add if desired
Up -- Change position in the route. move up the list. moves one position each click
Down -- Change position in the route move down the list, moves one position each click
Delete -- Deletes the location from the route.

Bottom of window

Add Location button --add the location to the route
Add location at start
-- add the location to the start of the route
Add location at end -- add the location to the end of the route

Display

Wait
Departure Time

Delete Route button -- deletes the route

Add Route button -- adds route, greyed out

Save Route -- saves the route file after editing.
