OS Indicator
This tool makes it easy to drive an occupancy indicator lamp on a CTC panel from an occupancy
sensor, while allowing for the indicator to be forced on when the track section is unlocked
into manual mode.

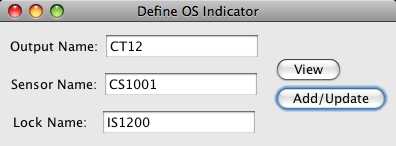

Fields and buttons:
- Output Name
- Enter the system name or user name of the Turnout the follower will control
- Sensor Name
- Enter the system name or user name of the Sensor the followe will watch
- Lock Name
- If a sensor is added here, the output turnout will be set THROWN (on) when the sensor
is INACTIVE. This can be used e.g. to indicate that a particular track section has been
unlocked.
- View
- Enter an output turnout name and click this button to see any existing follower
configuration.
- Add/Update
- File out fields as desired and press Add/Update to create a new follower or modify an
existing one.
