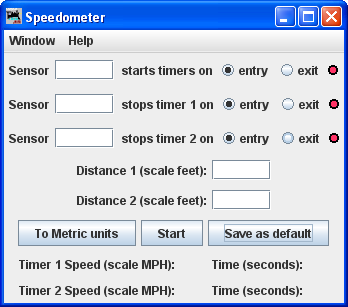

Speedometer Panel


speedometer

Three sensors are installed on your layout, sensor 1 and 2 for slow speeds, and sensor 1 and 3 used for higher speeds. The time to travel between the sensors is used with the distance to calculate the speed in English or Metric units

Enter the sensor number for each of the sensors in the Sensor text box. You can set to start or stop on the entry or exit of the block.

Enter the Distance 1 (scale feet): in text box, which is the distance between sensor 1 and 2.

Enter the Distance 2 (scale feet): in text box, which is the distance between sensor 1 and 3.

To metric units button converts output to metric values.

The Start button starts the speedometer.

The Save as default button saves the defined speedometer as the default setup

The Timer 1 and 2 Speed(scale MPH): and Time (seconds) is displayed.
