DecoderPro3® Main Window

Decoder Information Area

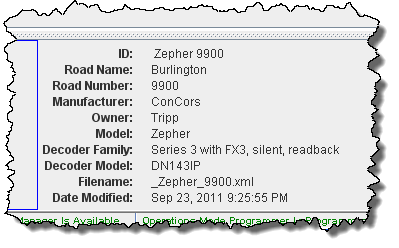

decoder info Displays the information about the current decoder selected.
decoder program mode

You may select the progamming mode:
Programming Track
Programming on Main
Edit Only allows you to edit the roster without programming the locomotive.

button Opens the Default Programmer for the selected decoder in the Roster List
labels

Opens the Labels & Media Window for the selected roster member.

Functions labels TAB opens the Function labels pane which allows you to label throttle function buttons

Roster Media TAB opens the Roster Media pane which allows you to assign an image to the roster entry
throttle Opens a throttle tool for the selected loco in the Roster List.
