JMRI Web Access

Basic Use

JMRI supports working with your layout from a web browser.


Details of the JMRI web components.

JMRI: Operations web functions

JMRI Operations is a feature-rich area of JMRI. You can learn more about JMRI Operations in the User Guide.

Providing access to these Operations features from mobile devices and web browsers is still under development.
With JMRI running on your network and the Web Server active, the current functionality can be accessed by visiting the http://localhost:12080/operations URL.

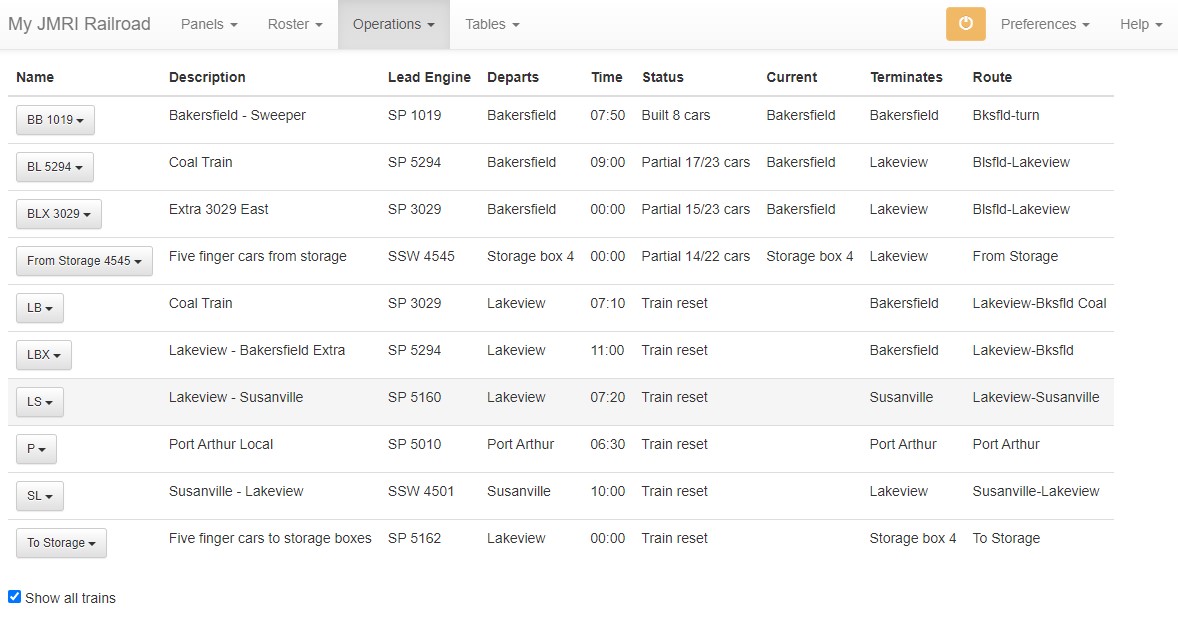

Under the Operations tab, that web page lists all available trains, with a link to the Manifest page for each Train.

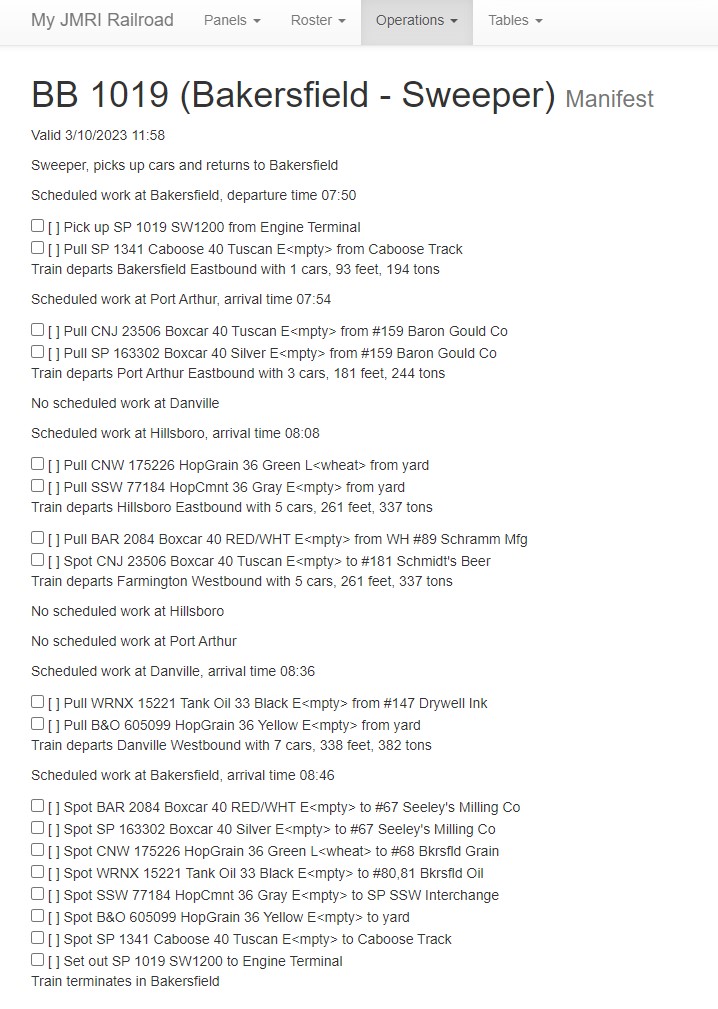

From each Manifest page, you can view the Locations to be visited, and the current status of the Train.

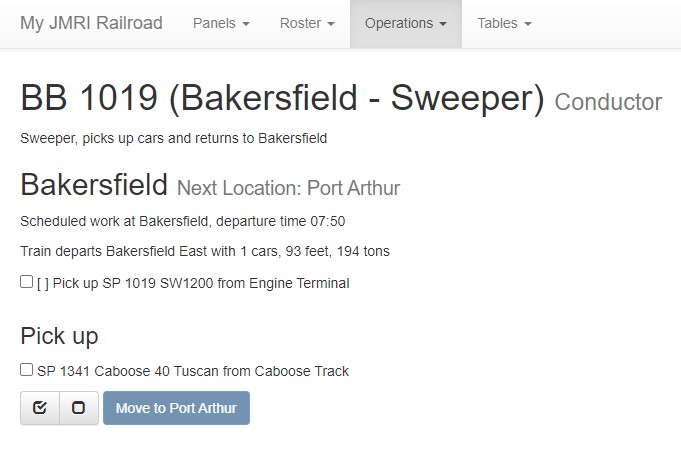

You can click on each location and the status line to display additional details about the pickups, set outs, and cars on the train.
